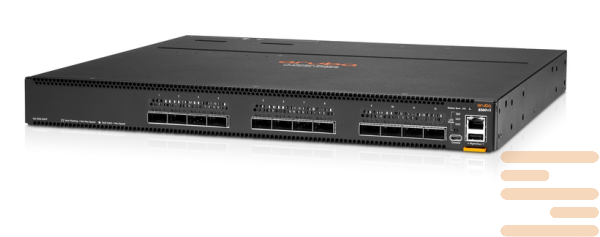

Switch Aruba (HPE) JL709C

Specifications

JL709C Datasheet

I/O ports and slots

12 ports of 40GbE/100GbE (QSFP+/ QSFP28) (optional 4x10G/25G breakout cables supported)

Additional ports and slots

Nguồn

2 nguồn có thể thay thế nóng

Quạt

3 quạt có thể thay thế nóng

Giao diện quản lý

- 1 cổng RJ-45 serial và 1 cổng USB-C console

- 1 cổng RJ-45 Ethernet port (MGMT)

- 1 cổng USB-Type A

Hiệu suất

Switching Capacity

2.4 Tbps

Throughput

2,678 Mpps

MAC Address Table Size

212,992

IPv4 Host Table

145,780

IPv6 Host Table

145,780

IPv4 Unicast Routes

606,977

IPv6 Unicast Routes

630,784

Maximum Number of Access Control List (ACL) Entries Ingress

IPv4 65,536, IPv6 16,384, MAC 65,536

Maximum Number of Access Control List (ACL) Entries Egress

IPv4 8,192, IPv6 2,048, MAC 8,192

Maximum VLANs

4,094

IGMP Groups

7,000

MLD Groups

7,000

IPv4 Multicast Routes

7,000

IPv6 Multicast Routes

7,000

Memory and Processor

CPU: 1.8 GHz 4-core 64-bit; RAM: 16 GB; Flash/Storage: 32 GB; Packet Buffer: 32 MB

Weight (imperial)

17.65 lb

Weight (metric)

8.01 kg

Product Dimensions (imperial)

1.73 x 17.4 x 16.0 in

Product Dimensions (metric)

4.40 x 4.42 x 40.6 cm
