Specifications
|
|

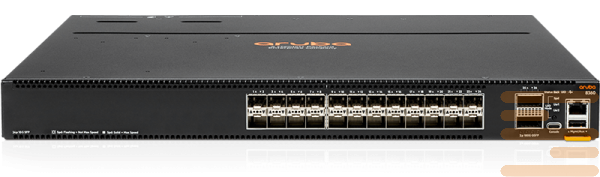

JL711C Datasheet
|
|
I/O ports and slots
|
24 ports of 1GbE/10GbE (SFP/SFP+) 2 ports of 40GbE/100GbE (QSFP+/ QSFP28) (optional 1GBASE-T SFP and 10GBASE-T SFP+ transceivers and 4x10G/25G breakout cables supported)
|
|
Additional ports and slots
|
|
Nguồn
|
2 nguồn có thể thay thế nóng
|
|
Quạt
|
3 quạt có thể thay thế nóng
|
|
Giao diện quản lý
|
- 1 cổng RJ-45 serial và 1 cổng USB-C console
- 1 cổng RJ-45 Ethernet port (MGMT)
- 1 cổng USB-Type A
|
|
Hiệu suất
|
|
Switching Capacity
|
880 Gbps
|
|
Throughput
|
2,678 Mpps
|
|
MAC Address Table Size
|
212,992
|
|
IPv4 Host Table
|
145,780
|
|
IPv6 Host Table
|
145,780
|
|
IPv4 Unicast Routes
|
606,977
|
|
IPv6 Unicast Routes
|
630,784
|
|
Maximum Number of Access Control List (ACL) Entries Ingress
|
IPv4 65,536, IPv6 16,384, MAC 65,536
|
|
Maximum Number of Access Control List (ACL) Entries Egress
|
IPv4 8,192, IPv6 2,048, MAC 8,192
|
|
Maximum VLANs
|
4,094
|
|
IGMP Groups
|
7,000
|
|
MLD Groups
|
7,000
|
|
IPv4 Multicast Routes
|
7,000
|
|
IPv6 Multicast Routes
|
7,000
|
|
Memory and Processor
|
CPU: 1.8 GHz 4-core 64-bit; RAM: 16 GB; Flash/Storage: 32 GB; Packet Buffer: 32 MB
|
|
Weight (imperial)
|
17.80 lb
|
|
Weight (metric)
|
8.07 kg
|
|
Product Dimensions (imperial)
|
1.73 x 17.4 x 16.0 in
|
|
Product Dimensions (metric)
|
4.40 x 4.42 x 40.6 cm
|
