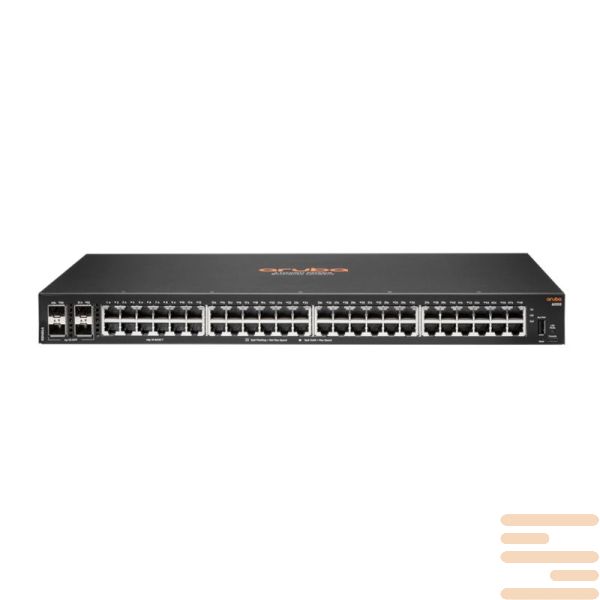

R8N86A specification
|
General
|
Device Type
|
Switch - 48 ports - L3 - managed - stackable
|
Enclosure Type
|
Side to side airflow rack-mountable 1U
|
Subtype
|
Gigabit Ethernet
|
Ports
|
48 x 10/100/1000 + 4 x Gigabit SFP
|
Performance
|
Packet buffer size: 12.38 MB
Throughput: 77.3 Mpps
Switching capacity: 104 Gbps
Latency (1 Gbps): 1.9 µs
|
Capacity
|
Switched virtual interfaces (SVIs): 16
ARP entries: 1024
IPv4 routes (Unicast): 512
IPv6 routes (Unicast): 512
IGMP groups: 512
MLD groups: 512
IPv4 ACL entries (ingress): 256
IPv6 ACL entries (ingress): 128
MAC ACL entries (ingress): 256
|
MAC Address Table Size
|
8192 entries
|
Jumbo Frame Support
|
9198 bytes
|
Routing Protocol
|
IGMPv2, IGMP, IGMPv3
|
Remote Management Protocol
|
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, CLI, ICMP, DHCP, RADIUS
|
Encryption Algorithm
|
SSL
|
Authentication Method
|
Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
|
Features
|
Flow control, BOOTP support, ARP support, VLAN support, DiffServ support, IPv6 support, SNTP support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, MLD snooping, Trusted Platform Module (TPM), LACP support, LLDP support, DHCP client, Management Information Base (MIB), Neighbor Discovery Protocol (NDP), SNMP support, Internet Control Message Protocol (ICMP), DNS client, LLDP-MED, User Datagram Protocol (UDP), Rapid Reconfiguration of Spanning Tree (RSTP), IPv6 addressing, UDP support, Any Source Multicast (ASM)
|
Compliant Standards
|
IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3az
|
Processor
|
1 x ARM A9: 1.016 GHz
|
RAM
|
4 GB DDR3 SDRAM
|
Flash Memory
|
16 GB
|
Expansion / Connectivity
|
Interfaces
|
48 x 10/100/1000 Base-T RJ-45
4 x Gigabit LAN SFP
1 x USB Type A
1 x USB-C console
|
Power
|
Power Device
|
Internal power supply
|
Voltage Required
|
AC 100 - 127 V / 200 - 240 V (50/60 Hz)
|
Power Consumption Operational
|
44.2 Watt
|
Miscellaneous
|
Compliant Standards
|
CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825-1, CAN/CSA C22.2 No. 60950, CNS 13438, IEC 60825-1 Class 1, EN 55024:2010, EN 60825-1:2007, FCC CFR47 Part 15 A, ICES-003 issue 6 Class A, UL 62368-1 Second Edition, CISPR 32 Class A, EN 62368-1:2014, VCCI-CISPR 32:2016 Class A, CISPR 35, EN 55035:2017, EN 55032:2015/AC:2016-07 Class A, IEC 62368-1 Second Edition
|
Dimensions
|
Width
|
17.4 in
|
Depth
|
9.7 in
|
Height
|
1.7 in
|
Manufacturer Warranty
|
Service & Support
|
Limited warranty - lifetime
|
Environmental Parameters
|
|
Min Operating Temperature
|
32 °F
|
Max Operating Temperature
|
113 °F
|
Humidity Range Operating
|
15 - 95% (non-condensing)
|
Min Storage Temperature
|
-40 °F
|
Max Storage Temperature
|
158 °F
|
Humidity Range Storage
|
15 - 90% (non-condensing)
|
