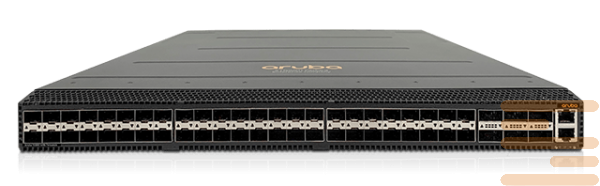

Datasheet R8P14A
|
|
SPECIFICATIONS
|
|
Base
|
10000-48Y6CZ (Back-to-Front)
|
|
External I/O Ports
|
48 SFP28, 6 QSFP28
|
|
Throughput
|
1,940 Mpps
|
|
Switching Capacity
|
1.8 Tbps (3.6 Tbps full-duplex)
|
|
Routing/switching Capacity
|
1.8 Tbps (3.6 Tbps full-duplex)
|
|
Switch Fabric Speed
|
3.2 Tbps (6.4 Tbps full-duplex)
|
|
Routing Capabilities
|
Static (IPv4/IPv6): RIPv2; RIPng; OSPF; OSPFv3; BGP-4; MP-BGP with IPv6; PBR; ECMP; GRE
|
|
Memory and Processor
|
CPU: 2.9GHz, 32 GB 92x16 GB) SODIMM, 64GB SSD, 32 MB SPI Flash (BIOS), 64 MB SPI Flash (SVOS); Packet Buffer: 32 MB; DPU: 2 x Pensando Elba 3GHz
|
|
Fans Name
|
6 x R8R54A (Back-to-Front)
|
|
Power Supply Name
|
2 x R8R52A (Back-to-Front)
|
|
Rack Mount Kits
|
2 post Rack Mount Kit (R8R55A) or 4 post Rack Mount Kit (R8R56A)
|
|
Power Consumption Description
|
550W
|
|
Management Features
|
CLI; REST API; SNMP; Aruba Fabric Composer; NetEdit; RJ-45 console Port; USB micro console port; RJ-45 out of band management port
|
|
Heat Dissipation
|
1,876 BTU/hr
|
|
Input Voltage
|
100-240VAC
|
|
Latency
|
< 1.3 µs
|
|
Weight (imperial)
|
21.45 lb
|
|
Weight (metric)
|
9.75 kg
|
|
Product Dimensions (imperial)
|
1.75 x 17.25 x 20.12 in
|
|
Product Dimensions (metric)
|
4.44 x 43.82 x 51.1 cm
|
|
Operating Temperature
|
0-40 C
|
