Switch Aruba (HPE) R8Q68A
7695 $

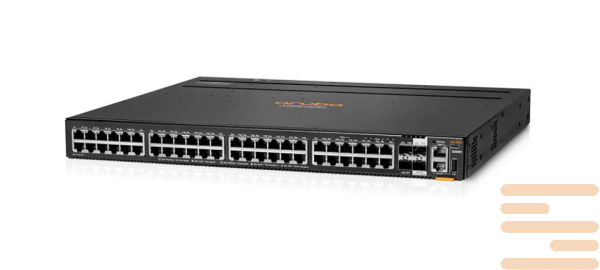

HPE Aruba Networking 6200M 24G Class4 PoE 4SFP+ Switch (R8Q68A)
Switches Aruba (Hewlett Packard Enterprise) offer to choose the optimal solution in terms of functionality and price for a task of any scale. L2 and L3 models, modular switches, fixed configuration devices are available in the line. All functionality is available at once, no need to buy additional licenses.
The core switches represented modular chassis 8400 and 5400 series, which are characterized by high performance, fault tolerance, a wide range of supported network protocols, and the ability to install service modules..
Switches of access represented by models with a wide range of supported network protocols, stacking support. Basically the range is represented by devices on 24 and 48 ports 10/100/1000 GigEthernet with the possibility of support PoE, or optical switches with SFP ports, as well as uplink interfaces SFP+ or QSFP+. Flexnetwork line has an extended support for dynamic routing protocols, IPv6 and MPLS.
Hewlett Packard Enterprise presents customers with a full line of products for campus networks on the operating system ArubaOS. Switches on OS ArubaOS convenient in deployment and operation. There is an opportunity to integrate with modern management and security tools Aruba ClearPass Policy Manager, Aruba AirWave and cloud service Aruba Central, Optimized for softwarely defined networks (SDN) with technology support OpenFlow. The key capabilities of the new operating system can be attributed to tunneling mode, devices profile, support SmartRate, ZTP (Zero Touch Provisioning) and support management systems (Aruba Activate, Central and AirWave), delineation of user access by roles using Aruba CPPM (ClearPass Policy Manager), Access OSPF for access switches and others.
Specifications of the switch Aruba (HPE) R8Q68A:
R8Q68A Specifications |
|
| Differentiator | 24x ports 10/100/1000BASE-T Class 4 PoE Ports, supporting up to 30W per port 4x 1G/10G SFP ports (2x LRM; 2x LRM/MACSec 256) Supports PoE Standards IEEE 802.3af, 802.3at 1x RJ-45 Console Port 1x USB-C Console Port 1x OOBM 1x USB Type-A Host port 2 field-replaceable, hot-swappable power supply slots, 1 power supply required (ordered separately) Supports PSU JL086A JL087A Switch has two fan tray slots; Switch includes one fan tray. Fan trays are field replaceable and hot- swappable. |
| Ports | 24x ports 10/100/1000BASE-T Class 4 PoE Ports, supporting up to 30W per port 4x 1G/10G SFP ports (2x LRM; 2x LRM/MACSec 256) Supports PoE Standards IEEE 802.3af, 802.3at 1x RJ-45 Console Port 1x USB-C Console Port 1x OOBM 1x USB Type-A Host port |
| Memory and processor | CPU: Quad Core ARM Cortex™ A72 at 1.8 GHz Memory and Flash: 8 GB DDR4 16 GB eMMC |
| Latency |
1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec |
| Throughput | Up to 95.2 Mpps |
| Routing/switching capacity | 128 Gbps |
| PoE capability | 740W |
| Stacking capabilities | 8 members |
| Power supply name |
2 field-replaceable, hotswappable power supply slots 1 minimum power supply required (ordered separately) Supported PSUs JL086A JL087A Max PoE Power: 740W |
| Input voltage |
100V-120V/200V-240V |
| Power consumption |
76W at 230 VAC |
| Product dimensions (metric) |
4.39 x 44.247 x 38.38 cm |
| Weight |
6.01 kg |
| condition | new |
|---|
