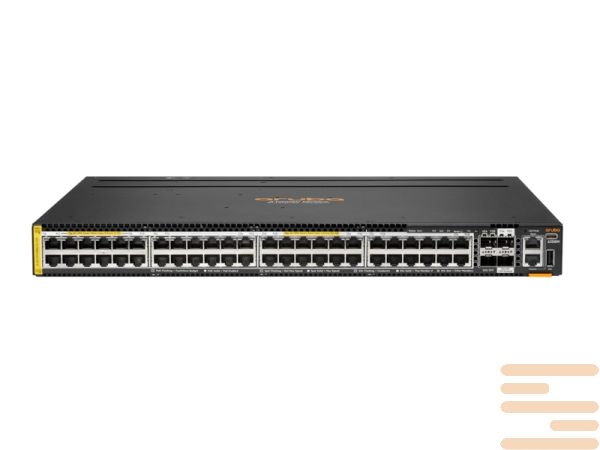

Switch series Aruba CX 6300 - is a modern, flexible and intelligent family of stackable switches ideal for enterprise access, aggregation and core deployment.
Powerful distributed architecture supports scalable non-blocking performance to secure the network in the future for tomorrow's unpredictable needs. This series has built-in high-speed uplinks and includes 24-port models SFP + and PoE at full density 60 W> and multi-gigabit Ethernet for a high performance network.
Cloud-centric design with a fully programmable OS provides automation and simplicity, including easy-to-use configuration tools for error-free installation. Built-in network-wide monitoring and analytics provide operators with immediate troubleshooting and insight into issues.
Switch Specifications Aruba R8S91A:
|
Ports
|
Up to 48 ports of HPE Smart Rate (1/2.5/5GbE) or 10/100/1000BASE-T, or 24 ports of SFP+ 4 ports of SFP56 PoE+ available on select models
|
|
Memory and processor
|
Quad Core ARM Cortex™ A72 @ 1.8GHz, 8 GBytes DDR4 32 GBytes eMMC 8 MB Shared Packet Buffer Memory
|
|
Throughput
|
Up to 654 Mpps, depending on model and configuration
|
|
Switching capacity
|
Up to 880 Gbps, depending on model and configuration
|
|
PoE capability
|
Up to 2,880 W, depending on model and installed power supplies
|
|
Stacking capabilities
|
Up to 10 switches per stack
|
|
Management features
|
Aruba AirWave Aruba Central Network Management Aruba NetEdit Command-line interface SNMP v2c/v3 RMON
|
|
Product Dimensions (imperial)
|
1.73 x 17.4 x 15.2 in, maximum, depending on model
|
|
Weight
|
13.27 lbs, maximum, depending on model
|
