Switch Aruba (HPE) S0F88A
100063 $

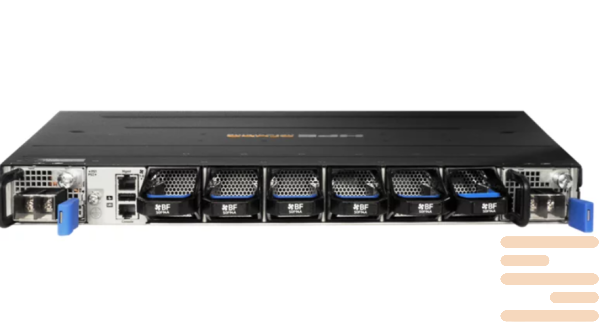

S0F88A HPE Aruba Networking 9300S 32p QSFP28 100G 8p QSFP-DD 400G Back-to-Front 6xFan 2xDC Bundle
Switches Aruba (Hewlett Packard Enterprise) offer to choose the optimal solution in terms of functionality and price for a task of any scale. L2 and L3 models, modular switches, fixed configuration devices are available in the line. All functionality is available at once, no need to buy additional licenses.
The core switches represented modular chassis 8400 and 5400 series, which are characterized by high performance, fault tolerance, a wide range of supported network protocols, and the ability to install service modules..
Switches of access represented by models with a wide range of supported network protocols, stacking support. Basically the range is represented by devices on 24 and 48 ports 10/100/1000 GigEthernet with the possibility of support PoE, or optical switches with SFP ports, as well as uplink interfaces SFP+ or QSFP+. Flexnetwork line has an extended support for dynamic routing protocols, IPv6 and MPLS.
Hewlett Packard Enterprise presents customers with a full line of products for campus networks on the operating system ArubaOS. Switches on OS ArubaOS convenient in deployment and operation. There is an opportunity to integrate with modern management and security tools Aruba ClearPass Policy Manager, Aruba AirWave and cloud service Aruba Central, Optimized for softwarely defined networks (SDN) with technology support OpenFlow. The key capabilities of the new operating system can be attributed to tunneling mode, devices profile, support SmartRate, ZTP (Zero Touch Provisioning) and support management systems (Aruba Activate, Central and AirWave), delineation of user access by roles using Aruba CPPM (ClearPass Policy Manager), Access OSPF for access switches and others.
Specifications of the switch Aruba (HPE) S0F88A:
| Specification | Details |
|---|---|
| Model Name | HPE Aruba Networking CX 9300S 32p QSFP28 100G + 8p QSFP-DD 400G (Back-to-Front airflow, 6 fans, 2 DC power supplies) – SKU: S0F88A |
| Switch Type | Fixed-configuration, 1U high-density spine switch (Layer 3) |
| Ports | 32 × QSFP28 (100 GbE) 8 × QSFP-DD (400 GbE) |
| Breakout Capability | 100 GbE → up to 4 × 25 GbE 400 GbE → 4 × 100 GbE or 2 × 200 GbE |
| Switching Capacity | 25.6 Tbps |
| Throughput | Up to ~5 billion packets per second (Bpps) |
| Memory & Storage | 32 GB RAM 128 GB M.2 SSD 4 GB mSATA |
| Processor | ~1.7 GHz multicore CPU |
| Airflow / Cooling | Back-to-Front airflow, 6 hot-swap fans |
| Power Supplies | 2 × DC hot-swappable supplies (redundant) |
| Power Consumption | Approx. 600 W |
| Dimensions (HxWxD) | ~1.7″ × 17.3″ × 23.2 cm (~4.4 × 44 × 23 cm) |
| Weight | ~26 lb (~11.8 kg) |
| Routing Protocol Support | Static, RIPv2, RIPng, OSPFv2/v3, BGP-4, MP-BGP, Policy-Based Routing (PBR), ECMP, EVPN-VXLAN |
| Ideal Use Case | Spine-layer data center deployments, EVPN-VXLAN fabric, high-density server/storage connectivity, scalable automation and streaming telemetry environments |
| condition | new |
|---|
