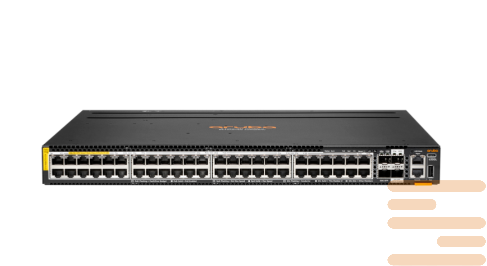

Switches HPE Aruba Networking CX 6300 Designed for businesses that require a high-performance, scalable, and manageable network. These devices provide advanced connectivity, network optimization, and simplified management, making them ideal for a variety of use cases.
Models HPE Aruba CX 6300 supports up to 48 ports 1G/10G/25G and 4 ports 40G/100G, Offering high throughput and low latency. They are equipped with an operating system Aruba AOS-CX, providing automation and programmability of the network. Support REST API and Aruba NetEdit simplifies deployment and configuration management, saving the IT department time and resources.
Switches CX 6300 Offer high reliability and fault tolerance with redundant power and fans. Virtual stack (VSF) simplifies management and increases resilience to network failures. Built-in security features such as dynamic segmentation, ACL, 802.1X and protection against attacks at Layer 2 provide high network security. Integration with Aruba ClearPass allows you to manage access and security policies.
These switches also support energy-efficient technologies, including IEEE 802.3az Energy Efficient Ethernet, which helps reduce energy consumption. Power consumption monitoring and management functions improve energy costs.
Switches HPE Aruba CX 6300 attractive for various use cases. In medium and large enterprises, they support complex network topologies and multiple users, providing high scalability. In data centers, high performance and throughput are needed to handle large amounts of data and support virtualization.
Technical specifications of the switch Aruba (HPE) S3L76A:
|
Characteristic
|
Value
|
|
Model
|
HPE Aruba S3L76A (Aruba 2930F 24G PoE+ 4SFP+ Switch)
|
|
Form Factor
|
Rack-mountable, 1U
|
|
Number of Ports
|
24 x 10/100/1000 PoE+
|
|
PoE Support
|
Yes, PoE+ (Power over Ethernet Plus)
|
|
Total PoE Power
|
Up to 370W with built-in power supply
|
|
Uplink Ports
|
4 x 1/10GbE SFP+
|
|
Maximum Throughput
|
128 Gbps
|
|
Switching Capacity
|
95.2 Mpps (million packets per second)
|
|
Packet Buffer
|
1.5 MB
|
|
MAC Address Table
|
16000 entries
|
|
Management Capabilities
|
Web GUI, Command-Line Interface (CLI), SNMP, RMON, REST API
|
|
Stacking Support
|
Virtual Stacking Framework (VSF)
|
|
IPv6 Support
|
Yes
|
|
Switching Level
|
Layer 3
|
|
QoS
|
Supported (8 priority queues)
|
|
Virtual LANs (VLAN)
|
Supports up to 4094 VLANs
|
|
Routing Table Size
|
10K IPv4, 5K IPv6 routes
|
|
Power Consumption
|
Maximum 45W (without PoE load)
|
|
Temperature Range
|
0°C to 45°C
|
|
Dimensions (W x D x H)
|
44.25 x 30.48 x 4.39 cm
|
|
Weight
|
3.7 kg
|
|
Warranty
|
Limited Lifetime Warranty
|
