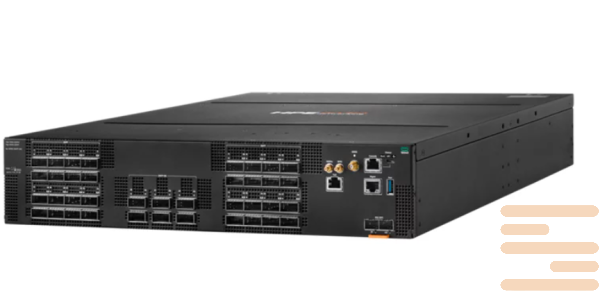

Switch Aruba (HPE) S4R55A
S4R55A HPE Aruba Networking CX 10040 32p QSFP28 100G 6p QSFP-DD 400G Back-to-Front 4xFan 2xPSU AC Bundle
Switches Aruba (Hewlett Packard Enterprise) offer to choose the optimal solution in terms of functionality and price for a task of any scale. L2 and L3 models, modular switches, fixed configuration devices are available in the line. All functionality is available at once, no need to buy additional licenses.
The core switches represented modular chassis 8400 and 5400 series, which are characterized by high performance, fault tolerance, a wide range of supported network protocols, and the ability to install service modules..
Switches of access represented by models with a wide range of supported network protocols, stacking support. Basically the range is represented by devices on 24 and 48 ports 10/100/1000 GigEthernet with the possibility of support PoE, or optical switches with SFP ports, as well as uplink interfaces SFP+ or QSFP+. Flexnetwork line has an extended support for dynamic routing protocols, IPv6 and MPLS.
Hewlett Packard Enterprise presents customers with a full line of products for campus networks on the operating system ArubaOS. Switches on OS ArubaOS convenient in deployment and operation. There is an opportunity to integrate with modern management and security tools Aruba ClearPass Policy Manager, Aruba AirWave and cloud service Aruba Central, Optimized for softwarely defined networks (SDN) with technology support OpenFlow. The key capabilities of the new operating system can be attributed to tunneling mode, devices profile, support SmartRate, ZTP (Zero Touch Provisioning) and support management systems (Aruba Activate, Central and AirWave), delineation of user access by roles using Aruba CPPM (ClearPass Policy Manager), Access OSPF for access switches and others.
Specifications of the switch Aruba (HPE) S4R55A:
| Feature | Specification |
|---|---|
| Model Number | Aruba CX 6410 Chassis Switch |
| Product Number | S4R55A |
| Product Type | Modular Layer 3 Chassis Switch |
| Chassis Form Factor | 10-slot (8 line card slots + 2 management/supervisor slots) |
| Switching Capacity | Up to 12.8 Tbps (depending on line cards) |
| Forwarding Rate | Up to 4,800 Mpps |
| Slot Configuration | 8 line card slots, 6 power supply slots, multiple fan trays |
| Supervisor Module | Aruba CX 6400 Management Module (varies by configuration) |
| Available Line Cards | 1/10/25/40/50/100GbE options |
| Airflow | Front-to-Back or Back-to-Front (depending on fan tray) |
| Fans | Hot-swappable fan trays with N+1 redundancy |
| Power Supply | Dual/Quad redundant, hot-swappable (AC or DC options) |
| Memory | 16 GB RAM, 16 GB Flash (expandable depending on module) |
| Packet Buffer | 32 MB per ASIC |
| Latency | < 2 µs (depending on module) |
| Jumbo Frame Support | Up to 9 KB |
| Redundancy | Management, power, and fan redundancy supported |
| Routing Protocols | OSPF, BGP, VRF, VXLAN, EVPN |
| Management | Aruba AOS-CX, CLI, Web GUI, REST API, SNMP, NetEdit |
| IPv4/IPv6 Support | Yes, full dual-stack |
| Operating Temperature | 0°C to 45°C |
| Certifications | CE, UL, FCC Class A |
| Warranty | Limited Lifetime Warranty (LLTW) |
| MTBF | > 150,000 hours (varies by config) |
| condition | new |
|---|
