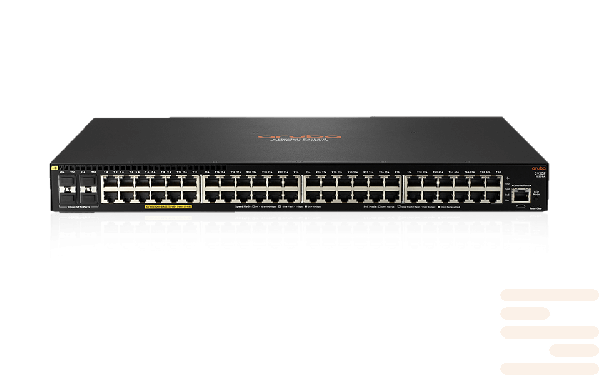

Switch Aruba JL559A

PHYSICAL INTERFACES

ADDITIONAL PORTS AND SLOTS

В·В В В В В В В В  1 dual-personality (RJ-45 or USB micro-B) serial console port

MEMORY AND PROCESSOR

В·В В В В В В В В  Dual Core ARM Cortex A9 @ 1016 MHz

В·В В В В В В В В  1 GB DDR3 SDRAM

В·В В В В В В В В  Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress

В·В В В В В В В В  4 GB eMMC

DIMENSIONS

В·В В В В В В В В  24G/48 PoE+ Switches (JL255A, JL256A, JL261A, JL262A, JL263A, JL264A):

В·В В В В В В В В  (H) 4.39 cm x (W) 44.25 cm x (D) 30.42 cm
(1.73" x 17.42" x 11.98") (1U height)

В·В В В В В В В В  48G PoE+ 740W Switches (JL557A, JL558A, JL559A):

В·В В В В В В В В  (H) 4.39 cm x (W) 44.25 cm x (D) 32.42 cm
(1.73" x 17.42" x 12.77") (1U height)

В·В В В В В В В В  Other 24G Switches (JL253A, JL259A):

В·В В В В В В В В  (H) 4.39 cm x (W) 44.25 cm x (D) 20.02 cm
(1.73" x 17.42" x 7.88") (1U height)

В·В В В В В В В В  Other 48G Switches (JL254A, JL2560A):

В·В В В В В В В В  (H) 4.39 cm x (W) 44.25 cm x (D) 24.63 cm
(1.73" x 17.42" x 9.7") (1U height)

В·В В В В В В В В  8G PoE+ 2SFP+ (JL258A, JL692A):

В·В В В В В В В В  (H) 4.39 cm x (W) 25.4 cm x (D) 25.4 cm
(1.73" x 10" x 10") (1U height)

В·В В В В В В В В  12G PoE+ 2SFP+ Switches (JL693A):

В·В В В В В В В В  (H) 4.39 cm x (W) 25.4 cm x (D) 25.4 cm
(1.73” x 10” x 10”) (1U height)

В·

PERFORMANCE

В·В В В В В В В В  1000 Mb Latency: < 3.8 Вµs (64-byte packets)

В·В В В В В В В В  10 Gbps Latency (JL253A-JL258A, JL693A): < 2.9 Вµs (64-byte packets)

В·В В В В В В В В  Routing table size: 10000 entries (IPv4), 5000 entries (IPv6)

В·В В В В В В В В  MAC address table size: 32768 entries

В·В В В В В В В В  48G 4SFP+ models (JL254A, JL256A, JL558A, JL264A, JL559A):

В·В В В В В В В В  Throughput: up to 112.0 Mpps

В·В В В В В В В В  Switching capacity: 176 Gbps

В·В В В В В В В В  24G 4SFP+ models (JL253A, JL255A, JL263A):

В·В В В В В В В В  Throughput: up to 95.2 Mpps

В·В В В В В В В В  Switching capacity: 128 Gbps

В·В В В В В В В В  48G 4SFP models (JL260A, JL262A, JL557A):

В·В В В В В В В В  Throughput: up to 77.4 Mpps

В·В В В В В В В В  Switching capacity: 104 Gbps

В·В В В В В В В В  12G 2SFP+ model (JL693A):

В·В В В В В В В В  Throughput: up to 41.7 Mpps

В·В В В В В В В В  Switching capacity: 68 Gbps

В·В В В В В В В В  Other switches (JL258A, JL259A, JL261A, JL692A):

В·В В В В В В В В  Throughput: up to 41.7 Mpps

В·В В В В В В В В  Switching capacity: 56 Gbps

ENVIRONMENTAL

В·В В В В В В В В  Operating temperature range:
32В°F to 113В°F (0В°C to 45В°C);
up to 5000 Feet, 0В°C to 40В°C (32В°F to 104В°F) up to 10000 Feet

В·В В В В В В В В  Operating relative humidity: 15% to 95%, noncondensing

В·В В В В В В В В  Storage temperature range: -40В°F to 158В°F (-40В°C to 70В°C); up to 15000 Feet

В·В В В В В В В В  Storage humidity: 15% to 95% @ 149В°F (65В°C)

В·В  В В

ELECTRICAL CHARACTERISTICS

В·В В В В В В В В  Frequency: 50/60 Hz

В·В  В  В

В·В В В В В В В В  PoE power:

В·В В В В В В В В  125 W PoE+ (JL258A, JL692A)

В·В В В В В В В В  139 W PoE+ (JL693A)

В·В В В В В В В В  370 W PoE+ (24G/48G PoE+ switches)

В·В В В В В В В В  740 W PoE+ (48G PoE+ switches)

В·В В В В В В В В  Notes:

В·В В В В В В В В  Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

В·В В В В В В В В  Idle power is the actual power consumption of the device with no ports connected (not applicable to the 8G switch).

SAFETY CERTIFICATIONS

В·В В В В В В В В  UL 69050-1: 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC 60950-1:2005 +A1:2009 +A2:2013; CSA 22.2 No. 60950-1-07 2nd; EN 60825-1:2007 / IEC 60825-1:2007 Class 1

EMISSIONS

В·В В В В В В В В  EN 55022:2010/CISPR 22 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A; CNS 13438

IMMUNITY

В·В В В В В В В В  Generic: EN 55024:2010/CISPR 24

В·В В В В В В В В  ESD: IEC 61000-4-2

В·В В В В В В В В  Radiated: IEC 61000-4-3

В·В В В В В В В В  EFT/Burst: IEC 61000-4-4

В·В В В В В В В В  Surge: IEC 61000-4-5

В·В В В В В В В В  Conducted: IEC 61000-4-6

В·В В В В В В В В  Power frequency magnetic field: IEC 61000-4-8

В·В В В В В В В В  Voltage dips and interruptions: IEC 61000-4-11

В·В В В В В В В В  Harmonics: IEC 61000-3-2

В·В В В В В В В В  Flicker: IEC 61000-3-3

MANAGEMENT AND MONITORING

В·В В В В В В В В  Aruba AirWave Network Management

В·В В В В В В В В  IMC - Intelligent Management Center

В·В В В В В В В В  Command line interface

В·В В В В В В В В  Graphical user interface (Web browser)

В·В В В В В В В В  Configuration menu

В·В В В В В В В В  SNMP manager

В·В В В В В В В В  Telnet; RMON1; FTP

В·В В В В В В В В  Out-of-band management (serial RS-232C or micro USB)
