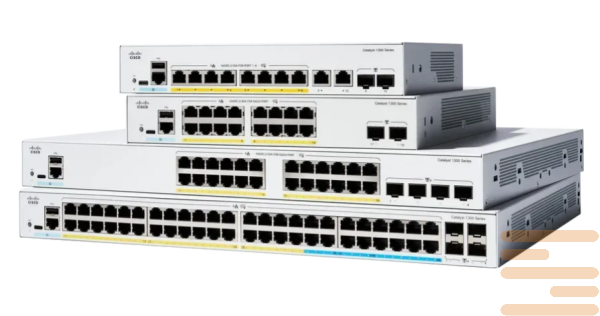

Switch Cisco C1300-16XTS
8 × 10 GbE RJ‑45 copper + 8 × 10 GbE SFP+; plus 1 × 1 GbE OOB management
A series of switches Cisco Catalyst 1300 - These are reliable, governed by GIGABIT Ethernet Layer 3 corporate switches designed for small and medium -sized enterprises and philies. They are the perfect choice for deploying outside the cable cabinets due to their simplicity, flexibility and safety. The operating environment of these switches is based on specialized software Linux OS with an intuitive interface.
Basic applications:
-
Protected office connection: Switches Cisco Catalyst 1300 easily and safely connect employees to each other and with different network devices that ensures the performance and reliability of the network.
-
Communications: The 1300 series switches support all kinds of communications and data through a single network that makes them ideal for implementing IP telephony decisions and combined communications.
-
Highly protected guests' connection: Thanks to powerful security features and traffic segmentation, the 1300 series switches guarantee high security of network connectivity for guests in hotels, offices and other areas.
Basic features and preferences:
- Simplified Management and Deployment by intuitive interface.
- Support for network management protocol SNMP for remote control.
- Ability to connect via Bluetooth to get a switch access.
- Solutions Cisco Network Plug and Play For easy introduction of new devices.
- High bandwidth for demanding applications and technologies.
With switches Cisco Catalyst 1300 Series Your business will have access to a reliable, easily tuned network that will ensure the performance and safety of your business. Do not lose the ability to improve your network for digital transformation - Choose Cisco Catalyst 1300 Series.
Specifications: Switchboard C1300-16XTS
| Specification | Details |
|---|---|
| Model | Cisco Catalyst C1300‑16XTS (16‑port 10 GbE switch) |
| Ports | 8 × 10 GbE RJ‑45 copper + 8 × 10 GbE SFP+; plus 1 × 1 GbE OOB management |
| Switching Capacity | 320 Gbps |
| Forwarding Rate | 238.1 Mpps |
| Packet Buffer | 3 MB shared buffer |
| RAM / Flash / CPU | 1 GB DDR4 RAM; 512 MB flash; dual-core ARM @ 1.4 GHz |
| Stacking Support | Front-panel stacking, up to 4 units |
| Console & USB | RJ‑45 console plus front USB‑C file/image management |
| Dimensions | 300 × 268 × 44 mm (11.8″ × 10.6″ × 1.73″) |
| Weight | ~2.68 kg (5.91 lb) |
| Cooling | Single front-to-back fan |
| Power Supply | Internal PSU, AC 100–240 V |
| Power Consumption | Not specified; estimated around typical C1300 levels |
| Operating Temperature | –5 °C to +50 °C |
| Humidity | 10–90% non-condensing |
| Certifications | UL, CSA, CE, FCC Class A |
| Software & Features | Linux-based OS; Layer 2/3 (static & dynamic); 802.1X, DHCP/IGMP snooping; Energy‑Efficient Ethernet; MACsec; managed via Cisco Business Dashboard & app |
| Warranty & Support | Limited-lifetime hardware warranty (small-business level) |
| condition | new |
|---|
