Switch Cisco C1300-24XTS

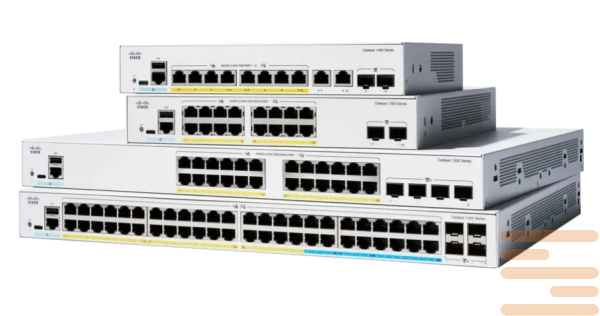

Cisco Catalyst C1300‑24XTS (24×10G switch: 12×10G RJ‑45 copper + 12×10G SFP+)
A series of switches Cisco Catalyst 1300 - These are reliable, governed by GIGABIT Ethernet Layer 3 corporate switches designed for small and medium -sized enterprises and philies. They are the perfect choice for deploying outside the cable cabinets due to their simplicity, flexibility and safety. The operating environment of these switches is based on specialized software Linux OS with an intuitive interface.
Basic applications:
-
Protected office connection: Switches Cisco Catalyst 1300 easily and safely connect employees to each other and with different network devices that ensures the performance and reliability of the network.
-
Communications: The 1300 series switches support all kinds of communications and data through a single network that makes them ideal for implementing IP telephony decisions and combined communications.
-
Highly protected guests' connection: Thanks to powerful security features and traffic segmentation, the 1300 series switches guarantee high security of network connectivity for guests in hotels, offices and other areas.
Basic features and preferences:
- Simplified Management and Deployment by intuitive interface.
- Support for network management protocol SNMP for remote control.
- Ability to connect via Bluetooth to get a switch access.
- Solutions Cisco Network Plug and Play For easy introduction of new devices.
- High bandwidth for demanding applications and technologies.
With switches Cisco Catalyst 1300 Series Your business will have access to a reliable, easily tuned network that will ensure the performance and safety of your business. Do not lose the ability to improve your network for digital transformation - Choose Cisco Catalyst 1300 Series.
Specifications: Switchboard C1300-24XTS
| Specification | Details |
|---|---|
| Model | Cisco Catalyst C1300‑24XTS (24×10G switch: 12×10G RJ‑45 copper + 12×10G SFP+) |
| Ports | 12 × 10 GbE RJ‑45 copper; 12 × 10 GbE SFP+ |
| Management Port | 1 × 1 GbE RJ‑45 out‑of‑band |
| Switching Capacity | 480 Gbps |
| Forwarding Rate | 357.12 Mpps |
| Packet Buffer | 1.5 MB |
| Stacking Support | Front-panel stacking up to 8 units |
| Cooling | Single fan (quiet, front-to-back airflow) |
| Power Supply | Internal AC PSU |
| Dimensions (W × D × H) | 445 × 273 × 44 mm (17.5″ × 10.7″ × 1.73″) |
| Weight | ~4.2 kg (9.25 lb) |
| Operating Temperature | –5 °C to +50 °C |
| Humidity | 10–90 % non‑condensing |
| Certifications | UL, CSA, CE, FCC Class A |
| Software & Features | Full Layer 2/3, STP/RSTP/MSTP, ACLs, 802.1X, QoS, IPv6, PoE (no), web/CLI/SNMP management, Cisco Business Dashboard support |
| Warranty & Support | Limited lifetime with return-to-factory replacement |
| condition | new |
|---|
