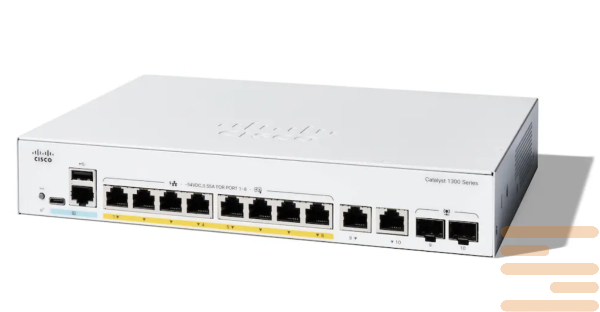

Switch Cisco C1300-8T-E-2G

SKU

C1300-8T-E-2G

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Call for Price

EAN: 18561

Stock: available on order

Lead time: 10-14 days

Switch Cisco Catalyst C1300-8T-E-2G-EU 8-Ports GE, 2 Combo Uplink

Category: Catalyst 1000 Series

Details

Series of switches Cisco Catalyst 1300 – these are reliable, managed corporate Gigabit Ethernet Layer 3 switches designed for small and medium enterprises and branch offices. They are an ideal choice for deployment outside the cable closet due to their simplicity, flexibility, and security. The operating environment of these switches is based on specialized software Linux OS with an intuitive interface.

Main Applications:

Secure office connection: Switches Cisco Catalyst 1300 easily and securely connect employees to each other and to various network devices, which ensures network performance and reliability.

The 1300 series switches support all types of communications and data over a single network, which makes them ideal for implementing IP telephony and unified communications solutions.

Highly secure guest connectivity With powerful security and traffic segmentation tools, the 1300 series switches ensure highly secure network connectivity for guests in hotels, offices and other areas.

Main Features and Benefits:

Simplified management and deployment using an intuitive interface.
Support for network management protocol SNMP for remote management.
Ability to connect via Bluetooth for accessing the switch.
Solutions Cisco Network Plug and Play for easy implementation of new devices.
High throughput for demanding applications and technologies

With switches Cisco Catalyst 1300 Series your business will have access to a robust, easily configurable network that will keep your business productive and secure. Don't miss the opportunity to upgrade your network for digital transformation - choose Cisco Catalyst 1300 Series.

Technical specifications: Switch C1300-8T-E-2G

Datasheet Switch Cisco C1300-8T-E-2G-EU
Specifications
Port	8 x 1 Gigabit Ethernet 2x Gigabit copper/SFP combo ports
Console port	Cisco standard RJ-45 console port and USB Type C port
USB port	USB Type C port on the front panel of the switch for easy file and image management as well as console port
Performance
Switching capacity in Gigabits per second (Gbps)	20 Gbps
Capacity in Millions of Packets Per Second (mpps) (64-byte packets)	14.88 Mpps
Hardware
CPU	ARM dual-core at 1.4 GHz
DRAM	1 GB DDR4
Flash	512 MB
Packet buffer	1.5 MB
Buttons	Reset button
Cabling type	Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T
LEDs	System, Link/Act, PoE, Speed
Feature
Spanning Tree Protocol	Standard 802.1d Spanning Tree support Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default Multiple Spanning Tree instances using 802.1s (MSTP); 8 instances are supported Per-VLAN Spanning Tree Plus (PVST+) and Rapid PVST+ (RPVST+); 126 instances are supported
Port grouping/link aggregation	Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP) ● Up to 8 groups ● Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation
VLAN	Support for up to 4093 VLANs simultaneously Port-based and 802.1Q tag-based VLANs, MAC-based VLAN, protocol-based VLAN, IP subnet-based VLAN Management VLAN Private VLAN with promiscuous, isolated, and community port Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks Guest VLAN, unauthenticated VLAN Dynamic VLAN assignment via RADIUS server along with 802.1X client authentication Customer premises equipment (CPE) VLAN Auto surveillance VLAN (ASV)
Voice VLAN	Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Voice Services Discovery Protocol (VSDP) delivers networkwide zero-touch deployment of voice endpoints and call control devices
Multicast TV VLAN	Multicast TV VLAN allows the single multicast VLAN to be shared in the network while subscribers remain in separate VLANs. This feature is also known as Multicast VLAN Registration (MVR)
IPv4 routing	Wire-speed routing of IPv4 packets Up to 990 static routes and up to 128 IP interfaces
IPv6 routing	Wire-speed routing of IPv6 packets
Layer 3 interface	Configuration of a Layer 3 interface on a physical port, LAG, VLAN interface, or loopback interface
Routing Information Protocol (RIP) v2	Support for RIP v2 for dynamic routing
Policy-Based Routing (PBR)	Flexible routing control to direct packets to a different next hop based on an IPv4 or IPv6 Access Control List (ACL)
DHCP server	Switch functions as an IPv4 DHCP server, serving IP addresses for multiple DHCP pools or scopes Support for DHCP options
Environmental
Unit dimensions (W x H x D)	268 x 185 x 44 mm (10.56 x 7.28 x 1.73 in)
Unit weight	1.39 kg (3.06 lb)
Power	100-240V 50-60 Hz
Certification	UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Operating temperature	23° to 122°F (-5° to 50°C)
Storage temperature	-13° to 158°F (-25° to 70°C)
Operating humidity	10% to 90%, relative, noncondensing
Storage humidity	10% to 90%, relative, noncondensing
Fan (number)	Fanless
MTBF at 25°C (hours)	2,171,669
