Series of switches Cisco Catalyst 9200 – this is an innovative cutting-edge equipment that allows you to quickly solve classic, standard organizational tasks, both basic elementary level and more complex advanced ones.
Switches Cisco Catalyst 9200 able to create all the conditions for support and access of the network automation system. The feature of the line is that all its models effectively increase the reliability of all networks without exception.
Switches ensure security and protect the integrity of equipment and software, as well as data of both companies and users that pass through the device. The failure and interruptions in the work of switches are minimal, thanks to which your business will work without any interruptions.
Switches Catalyst 9200 with PoE+ support, additional power and fans, provide high stacking throughput up to 160 Gbit/with. With modular integrated lines, support for class 3 functions and cold adjustment, they represent an unprecedented solution in the field with differentiated protection against possible failures and failures and an innovative structure for cost-effective branches.
Features and advantages of switches Cisco Catalyst 9200:
- Power supply redundancy;
- Hardware support flexible Netflow;
- Directional telemetry;
- Saving power over PoE in the event of a hardware module reboot;
- Supports automation and remote management;
- Enhanced security features (segmentation and encryption);
- Transformed stacking algorithm StackWise-80/160;
- Supports options L3;
- Up to 160 Gbit/with, stack;
- 1 Gbit/with or 10 Gbit/with uplink;
- «Cold upgrades, redundant power supplies and blower fans;
- AES-128 MACsec coding;
- OS Cisco IOS XE;
- SD-Access.
Line of devices Cisco Catalyst 9200 allows you to manage data, information and Internet capacities without problems. Increased security level will protect your business and personal personal data from any unauthorized penetration and hacker attacks.

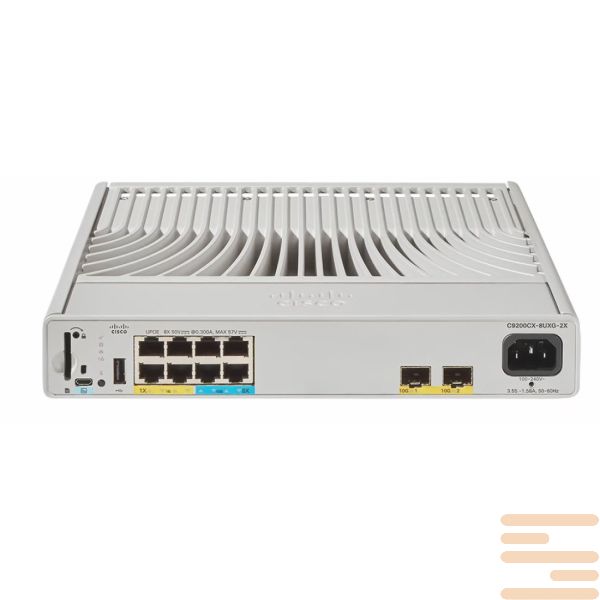

Technical specifications switch Cisco C9200CX-8UXG-2X-A:
General Information
|
Manufacturer:
|
Cisco Systems, Inc
|
|
Manufacturer Part Number:
|
C9200CX8UXG2XA
|
|
Manufacturer Website Address:
|
http://www.cisco.com
|
|
Brand Name:
|
Cisco
|
|
Product Line:
|
Catalyst
|
|
Product Series:
|
9200
|
|
Product Model:
|
C9200CX-8UXG-2X
|
|
Product Name:
|
Catalyst C9200CX-8UXG-2X Ethernet Switch
|
|
Product Type:
|
Ethernet Switch
|
Technical Information
Interfaces/Ports
|
Total Number of Network Ports:
|
8
|
|
Uplink Port:
|
Yes
|
|
Modular:
|
Yes
|
|
Network (RJ-45):
|
Yes
|
|
Port/Expansion Slot Details:
|
8 x 10 Gigabit Ethernet UPoE, 2 x 10 Gigabit Ethernet Expansion Slot
|
Media & Performance
|
Media Type Supported:
|
Twisted Pair, Optical Fiber
|
|
Ethernet Technology:
|
Gigabit Ethernet, 10 Gigabit Ethernet
|
|
Network Technology:
|
10GBase-X, 10/100/1000Base-T
|
I/O Expansions
|
Number of Total Expansion Slots:
|
2
|
|
Expansion Slot Type:
|
SFP+
|
|
Number of SFP+ Slots:
|
2
|
Network & Communication
|
Layer Supported:
|
3
|
|
Networking Standards:
|
IEEE 802.3at, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.1D, IEEE 802.1p, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
|
Management & Protocols
Power Description
|
PoE (RJ-45) Port:
|
Yes
|
|
PoE Budget:
|
240 W
|
|
Input Voltage:
|
120 V AC, 230 V AC
|
|
Frequency:
|
50 Hz, 60 Hz
|
|
Power Source:
|
Power Supply
|
|
Power Consumption:
|
315 W
|
Physical Characteristics
|
Form Factor:
|
Rack-mountable, DIN Rail Mountable, Wall Mountable, Compact, Under Table
|
|
Height:
|
1.7"
|
|
Width:
|
10.6"
|
|
Depth:
|
9.6"
|
|
Weight (Approximate):
|
7 lb
|
Miscellaneous
|
Application/Usage:
|
Business, Enterprise, Network, Campus, IP Phone
|
|
Environmentally Friendly:
|
Yes
|
|
Environmental Certification:
|
RoHS-5, WEEE
|
Warranty
|
Limited Warranty:
|
Lifetime
|
