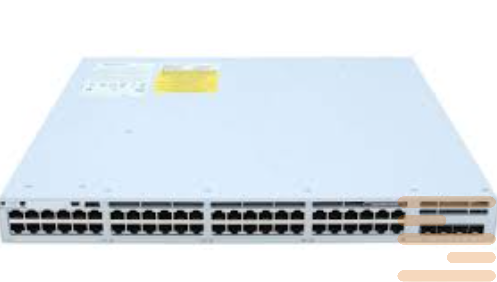

Switch Cisco C9300L-48T-4X-M
Cisco Catalyst C9300L‑48T‑4X‑M (Meraki‑managed) 48 × 1 GbE RJ‑45 (data-only) 4 × 10 GbE/1 GbE SFP+
Switches of the ruler Cisco Catalyst – ITelectual and flexible network solutions with fixed configuration characteristics, a wide line of modules to solve issues with the correct operation of the LAN. Network communicators make it possible to simplify the operation of IT infrastructure, guarantee the safety of business processes, ensure uninterrupted network functioning.
New Switches Cisco Catalyst 9300 series implements the convergence of the Internet of Things with an industry-leading level of scalability, providing up to 384 ports with a power of up to 60W for UPOE, as well as POE+ and PoE, high security, support for the AVB protocol and the IEEE 1588 standard, service analysis and classification for Internet applications.
Switches Cisco Catalyst 9300 Provide intellectual, simple and maximally safe access by integrated wireless network controller. They can work in high -density conditions by standard 802.11ac the second wave (48 access points) and at the same time differ in compactness (form factor 1 RU).
The main advantages of the series 9300:
-
High mastabas with access points Wave2;
-
Processor Intel x86;
-
Intellectual power management using technology Cisco StackPower;
-
Support for dual stack for distribution IPv4/IPv6;
-
The latest operating system Cisco IOS XE;
-
Extended security functionality.
Specifications of the switch Cisco C9300L-48T-4X-M:
| Specification | Details |
|---|---|
| Model | Cisco Catalyst C9300L‑48T‑4X‑M (Meraki‑managed) |
| Ports | 48 × 1 GbE RJ‑45 (data-only) |
| Fixed Uplinks | 4 × 10 GbE/1 GbE SFP+ |
| Stacking Bandwidth | StackWise‑320 — up to 320 Gbps across up to 8 switches |
| Adaptive Policy | Supported via Meraki dashboard (over-the-wire tagging) |
| Management | Cloud-managed with Meraki dashboard and zero-touch provisioning |
| Default PSU | 350 W AC, hot-swappable (upgradeable) |
| PoE Support | None — data-only model |
| Switching Capacity | 320 Gbps (backplane) |
| Forwarding Rate | Typical ~190 Mpps for C9300 series |
| Physical Dimensions | 1.73″ × 17.5″ × 17.7″ (4.4 × 44.5 × 44.9 cm) |
| Weight | ~15.41 lb (7.0 kg) with default PSU & fans |
| Fans | 3 hot-swappable, N+1 redundancy |
| Operating Temp | –5 °C to +45 °C |
| Storage Temp | –40 °C to +70 °C |
| Humidity | 5–90% non‑condensing |
| Altitude | Up to 3,000 m (10,000 ft) at ≤ 40 °C |
| Warranty | Cisco Enhanced Limited Lifetime Hardware Warranty with NBD replacement |
| Software | Cisco IOS XE 16.11.1b+ (C9300L release); managed via Meraki dashboard with Adaptive Policy |
| condition | new |
|---|
