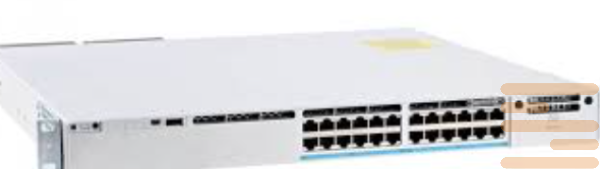

Switch Cisco C9300X-24HX-M
24 × 10G/5G/2.5G/1G/100 M Multigigabit RJ‑45 with 90 W UPOE+ (IEEE 802.3bt Type 4)
Switches of the ruler Cisco Catalyst – ITelectual and flexible network solutions with fixed configuration characteristics, a wide line of modules to solve issues with the correct operation of the LAN. Network communicators make it possible to simplify the operation of IT infrastructure, guarantee the safety of business processes, ensure uninterrupted network functioning.
New Switches Cisco Catalyst 9300 series implements the convergence of the Internet of Things with an industry-leading level of scalability, providing up to 384 ports with a power of up to 60W for UPOE, as well as POE+ and PoE, high security, support for the AVB protocol and the IEEE 1588 standard, service analysis and classification for Internet applications.
Switches Cisco Catalyst 9300 Provide intellectual, simple and maximally safe access by integrated wireless network controller. They can work in high -density conditions by standard 802.11ac the second wave (48 access points) and at the same time differ in compactness (form factor 1 RU).
The main advantages of the series 9300:
-
High mastabas with access points Wave2;
-
Processor Intel x86;
-
Intellectual power management using technology Cisco StackPower;
-
Support for dual stack for distribution IPv4/IPv6;
-
The latest operating system Cisco IOS XE;
-
Extended security functionality.
Specifications of the switch Cisco C9300X-24HX-M:
| Specification | Details |
|---|---|
| Product Name | Cisco Catalyst 9300X‑24HX‑M |
| Form Factor | Fixed 1U switch with modular uplink bays; 3 hot-swappable fan modules |
| Downlink Ports | 24 × 10G/5G/2.5G/1G/100 M Multigigabit RJ‑45 with 90 W UPOE+ (IEEE 802.3bt Type 4) |
| Uplink Slots | 4 modular uplink slots supporting 1/10/25 G SFP/SFP+ and 40/100 G QSFP28 |
| Stacking | StackWise‑1T up to 1 Tbps with 2 dedicated stacking ports; supports up to eight switches |
| StackPower+ | Supported for shared backup power across stack |
| Performance | 2,000 Gbps switching capacity; ~327 Mpps forwarding |
| Security & Policy | Adaptive Policy via over‑the‑wire tagging, AES‑256 MACsec, NBAR2, ETA, Flexible NetFlow; ThousandEyes included |
| Cloud Management | Managed via Meraki Dashboard (license required) |
| Energy Efficiency | Energy-Efficient Ethernet, per-port PoE control, blue beacon LED, RFID tag |
| Physical Dimensions | 1.73″ × 17.5″ × 17.6″ (4.4 × 44.5 × 44.7 cm) with fans & PSUs |
| Weight | 17 lb (7.71 kg) with default PSUs & fans |
| Operating Conditions | Temperature: –5 °C to +45 °C; humidity: 5–90% non-condensing |
| Use Cases | High-density UPOE+ deployment for Wi‑Fi 6/6E APs, smart-building PoE devices, enterprise access via cloud-managed solution |
| condition | new |
|---|
