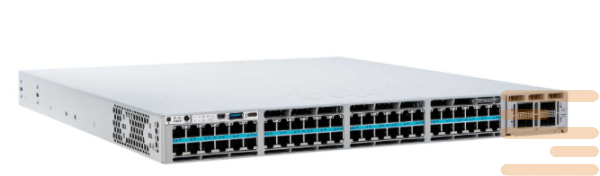

Switch Cisco C9300X-48HXN-M
48 ports total: 8 × 10G mGig & 40 × 5G/2.5G/1G/100 Mbps multigigabit copper, all with 90 W UPOE+ support
Switches of the ruler Cisco Catalyst – ITelectual and flexible network solutions with fixed configuration characteristics, a wide line of modules to solve issues with the correct operation of the LAN. Network communicators make it possible to simplify the operation of IT infrastructure, guarantee the safety of business processes, ensure uninterrupted network functioning.
New Switches Cisco Catalyst 9300 series implements the convergence of the Internet of Things with an industry-leading level of scalability, providing up to 384 ports with a power of up to 60W for UPOE, as well as POE+ and PoE, high security, support for the AVB protocol and the IEEE 1588 standard, service analysis and classification for Internet applications.
Switches Cisco Catalyst 9300 Provide intellectual, simple and maximally safe access by integrated wireless network controller. They can work in high -density conditions by standard 802.11ac the second wave (48 access points) and at the same time differ in compactness (form factor 1 RU).
The main advantages of the series 9300:
-
High mastabas with access points Wave2;
-
Processor Intel x86;
-
Intellectual power management using technology Cisco StackPower;
-
Support for dual stack for distribution IPv4/IPv6;
-
The latest operating system Cisco IOS XE;
-
Extended security functionality.
Specifications of the switch Cisco C9300X-48HXN-M:
| Specification | Details |
|---|---|
| Product Name | Cisco Catalyst 9300X‑48HXN‑M |
| Form Factor | Fixed 1RU switch with modular uplink bays |
| ASIC | Dual Cisco UADP 2.0sec ASICs with hardware 100 Gbps IPsec |
| Downlink Ports | 48 ports total: 8 × 10G mGig & 40 × 5G/2.5G/1G/100 Mbps multigigabit copper, all with 90 W UPOE+ support |
| Uplink Slots | 4 modular uplink slots supporting 1/10/25 G SFP/SFP+ and 40/100 G QSFP28 |
| Stacking | StackWise‑1T up to 1 Tbps, up to eight switches |
| StackPower+ | Supported for redundant/shared backup across stack |
| PoE Budget | 690 W with single 1100 W PSU, 30 W per port; with dual PSUs: 1790 W; up to 2590 W with 1900 W secondary |
| IPsec Throughput | Up to 100 Gbps hardware-accelerated |
| Security & Policy | Adaptive Policy via over-the-wire tagging; AES‑256 MACsec; NBAR2, ETA, Flexible NetFlow; Cisco ThousandEyes included |
| Energy Efficiency & Features | Energy-Efficient Ethernet, per-port PoE monitoring, blue-beacon ID LED, RFID asset tag |
| Dimensions (H×W×D) | 1.73″ × 17.5″ × 17.6″ (4.4 cm × 44.5 cm × 44.7 cm) |
| Weight | 17.5 lb (7.93 kg) including fans & PSUs |
| Fans & PSUs | 3 field-replaceable fans with N+1 redundancy; dual redundant PSUs (1100 W AC default) |
| Software Requirements | Runs Cisco IOS XE; cloud-managed via Meraki Dashboard (license required) |
| Use Case | Ideal for secure Wi‑Fi 6/6E environments, smart‑building UPOE+, high-bandwidth enterprise access ports |
| condition | new |
|---|
