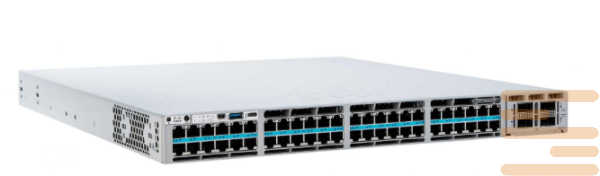

Switch Cisco C9300X-48TX-M
48 × 10G/5G/2.5G/1G/100M Multigigabit RJ‑45 (10GBASE‑T)
Switches of the ruler Cisco Catalyst – ITelectual and flexible network solutions with fixed configuration characteristics, a wide line of modules to solve issues with the correct operation of the LAN. Network communicators make it possible to simplify the operation of IT infrastructure, guarantee the safety of business processes, ensure uninterrupted network functioning.
New Switches Cisco Catalyst 9300 series implements the convergence of the Internet of Things with an industry-leading level of scalability, providing up to 384 ports with a power of up to 60W for UPOE, as well as POE+ and PoE, high security, support for the AVB protocol and the IEEE 1588 standard, service analysis and classification for Internet applications.
Switches Cisco Catalyst 9300 Provide intellectual, simple and maximally safe access by integrated wireless network controller. They can work in high -density conditions by standard 802.11ac the second wave (48 access points) and at the same time differ in compactness (form factor 1 RU).
The main advantages of the series 9300:
-
High mastabas with access points Wave2;
-
Processor Intel x86;
-
Intellectual power management using technology Cisco StackPower;
-
Support for dual stack for distribution IPv4/IPv6;
-
The latest operating system Cisco IOS XE;
-
Extended security functionality.
Specifications of the switch Cisco C9300X-48TX-M:
| Specification | Details |
|---|---|
| Product Name | Cisco Catalyst 9300X‑48TX‑M |
| Form Factor | Fixed 1RU, modular uplink bays |
| ASIC | Dual Cisco UADP 2.0sec ASICs |
| Downlink Ports | 48 × 10G/5G/2.5G/1G/100M Multigigabit RJ‑45 (10GBASE‑T) |
| Uplink Slots | 4 modular slots supporting 10/25 G SFP/SFP+ or 40/100 G QSFP28 |
| Stacking | StackWise‑1T (up to 1 Tbps) for up to 8-unit stacks |
| StackPower+ | Supported (allows redundant/shared power across stack) |
| IPsec Throughput | Up to 100 Gbps hardware‑accelerated encryption |
| Resiliency Features | Fast stack convergence, cross‑stack EtherChannel, SSO (< 50 ms), Flexlink+, stackable fans/PSUs |
| Adaptive Policy / Security | Adaptive Policy with over‑the‑wire tagging (Meraki), AES‑256 MACsec, NBAR2, ETA, FNF, ThousandEyes with DNA Advantage |
| Energy Efficiency | Energy‑Efficient Ethernet, per‑port PoE control, blue beacon, RFID asset tag |
| Cloud Management | Managed via Meraki Dashboard (license required) |
| Memory & Storage | Likely matches typical 9300 specs: 16 GB RAM, 16 GB flash |
| Use Cases | High‑density multigigabit access (e.g. Wi‑Fi 6/6E APs), cloud‑managed enterprise networks |
| condition | new |
|---|
