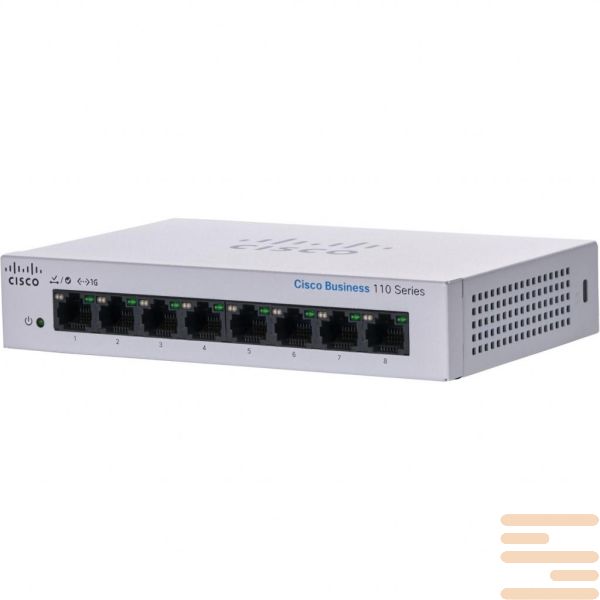

CBS110-8PP-D Specification
|
|
Specifications
|
Description
|
|
Capacity in millions of packets per second (mpps) (64-byte packets)
|
11.9 mpps
|
|
Switching capacity in gigabits per second (Gbps)
|
16 Gbps
|
|
Total system ports
|
8 Gigabit Ethernet
|
|
RJ-45 ports
|
8 Gigabit Ethernet
|
|
Power dedicated to PoE
|
32W
|
|
Number of ports that support PoE
|
4
|
|
Packet Buffer
|
2 Mbit
|
|
Unit dimensions (W x D x H)
|
160 x 129 x 30 mm (6.30 x 5.06 x 1.18 in)
|
|
General
|
|
Head-of-line (HOL) blocking
|
HOL blocking prevention
|
|
MAC table
|
2K addresses for CBS110-5T-D
8K addresses for all other models
|
|
Jumbo frame
|
9216 bytes
|
|
Quality of Service (QoS)
|
802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR)
|
|
Loop detection
|
Helps discover loops in the network to avoid broadcast storms
|
|
Cable diagnostics
|
Quickly identify and troubleshoot network cable faults and/or shorts
|
|
Media-dependent interface
|
Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X)
|
|
Standards
|
IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet
|
|
Hardware
|
|
LEDs
|
Power, link/activity (cable diagnostics, loop detection), Gigabit, * PoE, * Max PoE.
*if present
|
|
Cabling type
|
Category 5e or better
|
|
Mounting options
|
Desktop, wall-mount or rack mount
|
|
Physical security lock
|
Kensington lock slot
|
|
Flash
|
16 MB for CBS110-16T, CBS110-16PP
8 MB for CBS110-24T, CBS110-24PP
|
|
CPU
|
400 MHz ARM for CBS110-16T, CBS110-16PP, CBS110-24T, CBS110-24PP
|
|
CPU memory
|
128 MB for CBS110-16T, CBS110-16PP
64 MB for CBS110-24T, CBS110-24PP
|
|
Supported SFP modules
|
SKU
|
Media
|
Speed
|
Maximum distance
|
|
MGBSX1
|
Multimode fiber
|
1000 Mbps
|
500 m
|
|
MGBLX1
|
Single-mode fiber
|
1000 Mbps
|
10 km
|
|
MGBLH1
|
Single-mode fiber
|
1000 Mbps
|
40 km
|
|
MGBT1
|
UTP cat 5e
|
1000 Mbps
|
100 m
|
|
Environmental
|
|
Power
|
CBS110-5T-D, CBS110-8T-D: DC 12V, 1.0A
CBS110-8PP-D: DC 48V, 1.25A
CBS110-16T, CBS110-16PP, CBS110-24T, CBS110-24PP: 110-240VAC, 50-60 Hz, internal, universal
|
|
Green (power efficiency)
|
Supports IEEE 802.3az on all copper Gigabit Ethernet ports
|
|
Compliance/certifications
|
UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B*
*select models
|
|
Operating temperature
|
32° to 104°F (0° to 40°C)
|
|
Storage temperature
|
–4° to 158°F (–20° to 70°C)
|
|
Operating humidity
|
10% to 90%, relative, noncondensing
|
|
Storage humidity
|
5% to 90%, relative, noncondensing
|
|
Warranty
|
Limited lifetime
|
|
Package contents
|
|
● Cisco Business 110 Series switch
● Power cord or adapter
● Quick start guide
● Mounting kit
|
|
Minimum requirements
|
|
● Devices supporting 802.3 Ethernet, 802.3u Fast Ethernet, or 802.3ab Gigabit Ethernet
● Cat5e or better Ethernet cable
● Network interface card for each computer
|
