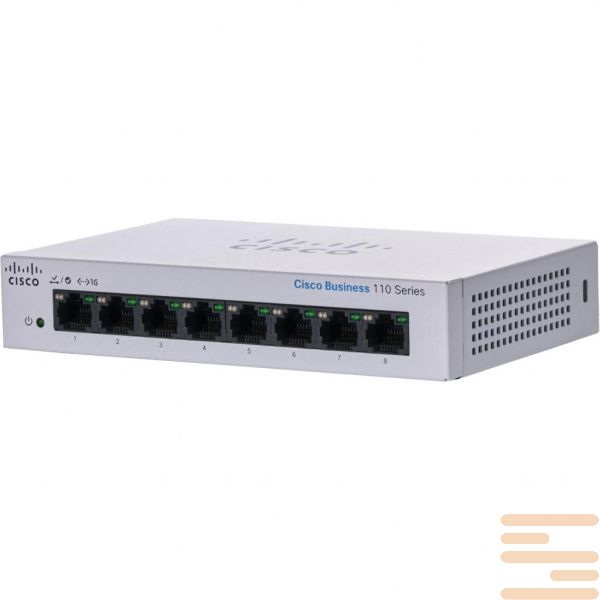

Switch Cisco CBS110-8T-D
Cisco Business 110 Unmanaged Switch, 8 10/100/1000 ports 30/mo Sold
Technical specifications: Switch Cisco CBS110-8T-D
|
CBS110-8T-D Specification |
||||
|
Specifications |
Description |
|||
|
Capacity in millions of packets per second (mpps) (64-byte packets) |
11.9 mpps |
|||
|
Switching capacity in gigabits per second (Gbps) |
16 Gbps |
|||
|
Total system ports |
8 Gigabit Ethernet |
|||
|
RJ-45 ports |
8 Gigabit Ethernet |
|||
|
Packet Buffer |
2 Mbit |
|||
|
Unit dimensions (W x D x H) |
160 x 104 x 30 mm (6.30 x 4.07 x 1.18 in) |
|||
|
General |
||||
|
Head-of-line (HOL) blocking |
HOL blocking prevention |
|||
|
MAC table |
2K addresses for CBS110-5T-D 8K addresses for all other models |
|||
|
Jumbo frame |
9216 bytes |
|||
|
Quality of Service (QoS) |
802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR) |
|||
|
Loop detection |
Helps discover loops in the network to avoid broadcast storms |
|||
|
Cable diagnostics |
Quickly identify and troubleshoot network cable faults and/or shorts |
|||
|
Media-dependent interface |
Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X) |
|||
|
Standards |
IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet |
|||
|
Hardware |
||||
|
LEDs |
Power, link/activity (cable diagnostics, loop detection), Gigabit, * PoE, * Max PoE. *if present |
|||
|
Cabling type |
Category 5e or better |
|||
|
Mounting options |
Desktop, wall-mount or rack mount |
|||
|
Physical security lock |
Kensington lock slot |
|||
|
Flash |
16 MB for CBS110-16T, CBS110-16PP 8 MB for CBS110-24T, CBS110-24PP |
|||
|
CPU |
400 MHz ARM for CBS110-16T, CBS110-16PP, CBS110-24T, CBS110-24PP |
|||
|
CPU memory |
128 MB for CBS110-16T, CBS110-16PP 64 MB for CBS110-24T, CBS110-24PP |
|||
|
Supported SFP modules |
SKU |
Media |
Speed |
Maximum distance |
|
MGBSX1 |
Multimode fiber |
1000 Mbps |
500 m |
|
|
MGBLX1 |
Single-mode fiber |
1000 Mbps |
10 km |
|
|
MGBLH1 |
Single-mode fiber |
1000 Mbps |
40 km |
|
|
MGBT1 |
UTP cat 5e |
1000 Mbps |
100 m |
|
|
Environmental |
||||
|
Power |
CBS110-5T-D, CBS110-8T-D: DC 12V, 1.0A CBS110-8PP-D: DC 48V, 1.25A CBS110-16T, CBS110-16PP, CBS110-24T, CBS110-24PP: 110-240VAC, 50-60 Hz, internal, universal |
|||
|
Green (power efficiency) |
Supports IEEE 802.3az on all copper Gigabit Ethernet ports |
|||
|
Compliance/certifications |
UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B* *select models |
|||
|
Operating temperature |
32° to 104°F (0° to 40°C) |
|||
|
Storage temperature |
–4° to 158°F (–20° to 70°C) |
|||
|
Operating humidity |
10% to 90%, relative, noncondensing |
|||
|
Storage humidity |
5% to 90%, relative, noncondensing |
|||
|
Warranty |
Limited lifetime |
|||
|
Package contents |
||||
|
● Cisco Business 110 Series switch ● Power cord or adapter ● Quick start guide ● Mounting kit |
||||
|
Minimum requirements |
||||
|
● Devices supporting 802.3 Ethernet, 802.3u Fast Ethernet, or 802.3ab Gigabit Ethernet ● Cat5e or better Ethernet cable ● Network interface card for each computer |
||||
| condition | new |
|---|
