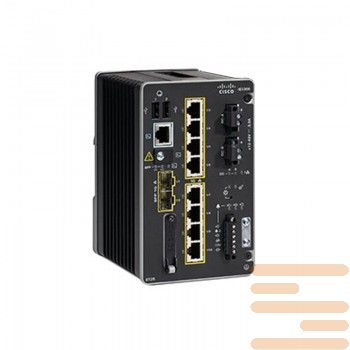

Cisco Catalyst IE3300 – An innovative line of professional switches that support full Gigabit Ethernet in a modular, optimized design.
The switches provide several modules with functionality for both copper and fiber optic cables, as well as PoE. Allocators provide great flexibility, they fully meet modern privacy requirements, securely protect personal information.
This series is characterized by easy handling, they are connected to the power supply and functionality by means of a single cable.. Devices provide switching at a high industrial level of high density, which is extremely important.
Increased switching density ensures uninterrupted power supply 24 ports PoE / PoE + / 4PPoE. The supply voltage of the switches is common for all ports and is 360/480 W>. With the help of these distributors, you can significantly accelerate the digital transformation and increase the network infrastructure to gigabit Internet.
The housing of the switches is made in an anti-corrosion design, which allows them to be used in conditions with a difficult, aggressive microclimate. Compactness is another undoubted plus of these units, they are almost a third smaller than their closest competitors.. Modest dimensions allow the switches to be integrated into rooms with a small area.
IOS XE – it is an innovative platform on which switches operate Cisco Catalyst IE3300. This operating system allows you to quickly deploy new services, it also securely stores data and stops any unauthorized intrusions.. В В
SpecificationsВ switch Cisco IE-3300-8T2S-E:
|
Switch model
|
IE-3300-8T2S-E
|
|
Software license
|
Network Essentials
|
|
Total ports
|
10
|
|
Ports RJ-45 10/100/1000
|
8
|
|
Ports SFP 100/1000
|
2
|
|
Ports RJ-45 1GE/2.5G
|
Not
|
|
Ports SFP+ 1GE/10G
|
Not
|
|
budget PoE
|
Not
|
|
Console ports
|
1 port RS-232 (through RJ-45), 1 port USB Mini Type B
|
|
Dimensions (H x W x D)
|
15.2 x 9.1 x 13.5 cm
|
|
The weight
|
1.7 kg
|
|
Mounting
|
DIN-rail
|
|
MAC-the address
|
8K
|
|
Quantity VLAN
|
256
|
|
DRAM
|
2 GB
|
|
memory (available to the user)
|
1.5 GB
|
|
Jumbo Frames
|
8996 byte
|
|
Input voltage range
|
Redundant DC input voltage: 9.6 to 60 VDC
|
|
Maximum input current
|
3.8 a
|
|
Power consumption 1
|
23 W>
|
