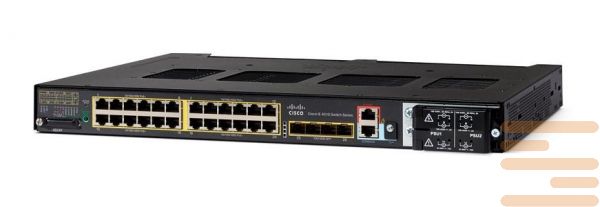

Cisco Industrial Ethernet Series 4010 – it is a reliable, secure and easily scalable platform Industrial Ethernet. This line of innovative and cutting-edge transducers was developed specifically for operation in difficult, extreme conditions..
Switches provide switching with increased bandwidth. This feature helps improve uptime.. Aggregates allow you to scale performance to connect to IP-cameras, communications and access points in enterprises and organizations such as: factories, substations, gas and oil fields and so on.
Distinctive features of switches Cisco Industrial Ethernet Series 4010
Switches of this subgroup are distinguished by reliability and uninterrupted operation even in extreme, harsh weather conditions.. They significantly help reduce idle time. Devices are able to withstand the impact of high mechanical loads. Function switches in a wide temperature range from – 40 before + 75 degrees Celsius.
Distributors support ring protocols of redundancy and fault tolerance, which allows to increase their efficiency by several times.
The switches are easy to install, they provide up to 385V PoE power, the units support 24 port Gigabit Power-over-Ethernet (PoE) or 12 ports PoE + in full insulated design with individual cooling and without blower.
The switches are very easy to deploy and do not require personnel with deep knowledge of Internet technologies to maintain them.. The devices support the protocol Cisco IOS Flexible NetFlow, which allows you to detect conflicting security incidents. В В В В В В
SpecificationsВ switch Cisco IE-4010-4S24P:
|
Description
|
Specification
|
|
Forwarding bandwidth
|
28 Gbps (line rate/non-blocking)
|
|
Switching bandwidth
|
56 Gbps(Switching bandwidth is full-duplex capacity)
|
|
Forwarding rate
|
41.67 mpps with 64 byte packets (line rate for all ports and packet sizes)
|
|
Number of queues
|
4 egress
|
|
Unicast MAC addresses
|
16,000
|
|
IGMP multicast groups
|
1000
|
|
Number of VLANs
|
1000
|
|
IPv4 MAC security ACEs
|
1000 with default TCAM template
|
|
NAT translation
|
Bidirectional, 128 unique subnet NAT translation entries, which can expand to tens of thousands of translated entriesif designed properly
|
