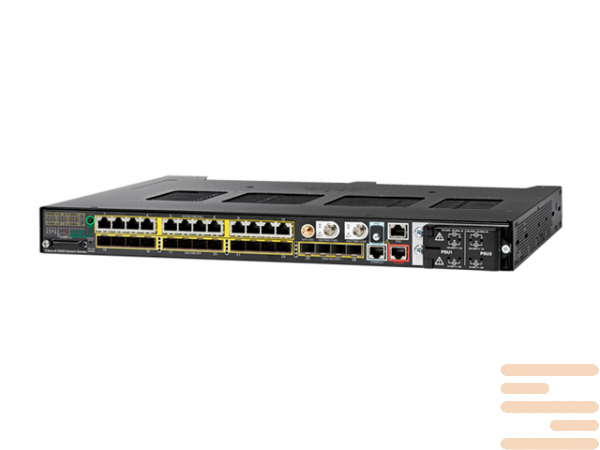

Device type
|
Switch - 28 ports - Managed
|
|
Type of shell
|
DIN rail mounting 1U
|
|
Subtype
|
Gigabit Ethernet
|
|
Ports
|
4 x 1 Gigabit / 10 Gigabit SFP+ + 12 x Fast Ethernet/Gigabit SFP + 12 x 10/100/1000 (PoE+)
|
|
Power through Ethernet (PoE)
|
PoE+
|
|
Performance
|
Forwarding bandwidth: 64 Gbps Switching bandwidth: 128 Gbps Forwarding rate: 95.238 Mpps
|
|
capacity
|
RADIUS clients 4 IGMP groups: 1000 VLANs supported: 1005 NAT translations: 256
|
|
Table size MAC-addresses
|
16 thousand records
|
|
Routing Protocol
|
OSPF, BGP-4, IS-IS, RIP-2, EIGRP, IGMPv2, HSRP, IGMP, PIM-SM, PIM-DM, IGMPv3, EIGRP for IPv6, OSPF for IPv6, static IPv4 routing, policy-based routing (PBR), RIPng, Bidirectional Forwarding Detection (BFD)
|
|
Remote control protocol
|
SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI, SCP
|
|
Encryption algorithm
|
FIPS 140-2
|
|
Authentication method
|
MODBUS
|
|
Functions
|
Layer 3 switching, layer 2 switching, NAT support, ARP support, IGMP snooping, Syslog support, Broadcast Storm Control, IPv6 support, full duplex mode, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, DHCP snooping, Quality of Service (QoS), Digital Optical Monitoring (DOM) support, DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), Dynamic ARP Inspection (DAI), Bidirectional Forwarding Detection (BFD), Uni-Directional Link Detection (UDLD), fanless, LLDP support, Port Security, Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), static routing, 802.1x authentication, SNMP support, MACsec support, IGMP filtering, Oven-Controlled Quartz Oscillator (OCXO), PROFINET v2, EtherNet/IP CIP Messaging, IP source guard, Flex Link support, Resilient Ethernet Protocol (REP), SmartPort technology, Parallel Redundancy Protocol (PRP), TrustSec support, CIP Sync (IEEE 1588), Network Timing Protocol (NTP), IGMP querier, VLAN Double Tagging (Q-in-Q), Voice VLAN, Private VLAN, Guest VLAN, STP BPDU Guard
|
|
Compliance
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag, IEEE 802.1ae, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.11ac, IEEE 1588v2, IEEE 1613
|
|
memory
|
1 GB
|
|
Flash memory
|
128 Mb
|
|
Embedded Devices
|
SD card reader
|
|
Interfaces
|
4 x 10GBase-X SFP+ uplink 12 x 1000Base-X SFP 12 x 1000Base-T RJ-45 PoE+ 1 x mini-USB 1 x console RJ-45 1 x antenna input 1 x ToD 1 x alarm RJ-45
|
|
Expansion slots
|
1 (total) / 0 (free) x SD Memory Card
|
|
Power device
|
Internal power supply
|
|
Installed Quantity
|
0 (installed) / 2 (max)
|
|
Power Redundancy Scheme
|
1+1
|
|
Power consumption Operating
|
90 W>
|
|
Included Accessories
|
1 GB SD card
|
|
MTBF
|
390,190 hours
|
|
Compliant Standards
|
ISPR 22 Class A, CISPR 24, EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, RoHS, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, UL 508, IEC 60529 IP30, CSA 22.2 No. 142, EN 61131-2, IEC 60068-2-64, EN 61000-4-9, EN 61000-4-29, EN50155, IEC 60068-2-14, EN 50121-4, VCCI Class A, KN22, KN24, China RoHS, EN 50121-3-2, EN 61326, CISPR 11 class A, EN 61000-4-18, IEC 61850-3, IEC 60068-2-3, EN 61373, ISO 9223, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, AS/NZS CISPR 24, IEC 60079, NOM-019-SCFI, IEEE 1588, IEEE 1613 Class 2, EN 60068-2-52, EN 60068-2-60
|
