Switches from the series Dell Networking N3000 designed to increase the nominal speed of network connections. The increase is due to a well-thought-out configuration. With Dell N3024 and N3048 the network is being upgraded with third-level distribution and support PoE+. Aggregation of network protocols is carried out simultaneously on several chassis and docking 12 modules. Switch distributors of the series N3000 focused on solving your management problems.
Select Dell Networking is also worth it for the guarantee savings. Switches of this series can operate at high temperatures up to 50 degrees Celsius, which will allow you to significantly reduce the cost of cooling. This functionality affects the cost of using switches in your favor.
High performance combined with capacity to solve problems with sudden workloads make the Dell Networking series switches the best choice for expanding networks GbE. This is due to the need for systematic deployment, high aggregation concentration and openness.
Switch models Dell Power Switch have 48 ports with power modifications PoE+ without the need to connect an external power source, which allows you to connect a device with power quality requirements, without the need to use a separate cable. This technology is very useful in older buildings, which will reduce the cost of laying power to remote necessary objects.

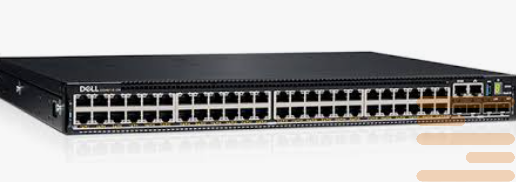

Technical specifications of the switch Dell E3248P-ON:
|
Specification
|
Description
|
|
Model
|
E3248P-ON
|
|
Form Factor
|
1U
|
|
Ports
|
48 ports of 1GbE RJ45, 4 ports of 10GbE SFP+
|
|
Performance
|
176 Gbps
|
|
Throughput
|
131 million packets per second (Mpps)
|
|
Memory
|
4 GB DRAM, 2 GB flash memory
|
|
Power Consumption
|
150 W (maximum)
|
|
Noise Level
|
55 dBA (maximum)
|
|
Operating System
|
Dell EMC Networking OS10
|
|
Management
|
CLI, SNMP, Telnet, SSH, Web GUI
|
|
Dimensions (W x H x D)
|
17.3 x 1.7 x 17.3 inches (440 x 43.5 x 440 mm)
|
|
Weight
|
5.2 kg
|
|
Operating Temperature
|
0°C to 40°C
|
|
Storage Temperature
|
-40°C to 70°C
|
|
Operating Humidity
|
10% to 85% (non-condensing)
|
|
Storage Humidity
|
5% to 95% (non-condensing)
|
|
Additional Features
|
Support for IPv4/IPv6, QoS, policy-based routing, VXLAN support, Network Function Virtualization (NFV), support for VxRail and VCF, integration with VMware and OpenStack
|
|
Security
|
802.1x, ACL, IP address filtering, port-based security
|
|
Redundancy
|
Hot-swappable fans and power supplies
|
