Switch Extreme 200-Series 220-12t-10GE2

SKU
220-12t-10GE2

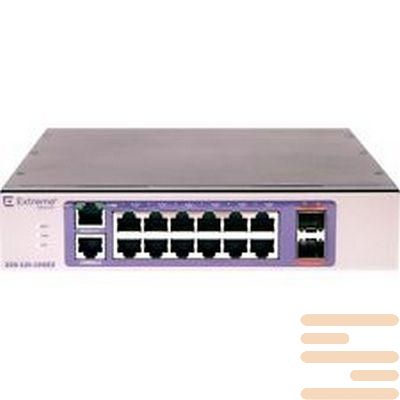

main product photo
€556.00
EAN: 12823
Stock: available on order
Lead time: 25-35 days
GPL price:

695 $

220 Series 12 port 10/100/1000BASE-T, 2 10GbE unpopulated SFP+ ports, 1 Fixed AC PSU, L2 Switching with RIP and Static Routes, 1 country-specific power cord
Category: Extreme Switch

Contacts
+36 20 807 9600
[email protected]

90 Days Return
If goods have problems

Secure Payment
100% secure payment

Switches Extreme Networks 200-Series - a series of switches, which in its composition has two lines of devices: 210 and 220 Series. Both rules of switches are built on non-blockable architecture and have in their composition of the device from 12, 24 or 48 types of type 10/100/1000 BaseT Ethernet. Each switch type is available in two versions: technology-enabled PoE/PoE+ on ports and without this technology support. In addition to interfaces 10/100/1000 BaseT, 210 series switches have two or four slots for installation SFP transceivers, and switch switches 220 – two or four SFP+ transceivers. In addition, the 220 series devices support the ability to stack up to four devices and have the ability to redundant the built-in power supply by connecting an external module..

The software capabilities of the two lines of switches also differ slightly.. Devices 210 series support IPv4 static routing and can be stored in its table up to 64 routes. The 220 series switches support static routing and dynamic routing using the RIP.

The new series of switches has extensive administration and management capabilities. To work with devices, you can use the command console, the built-in web interface, the control system Extreme Management or cloud management system Extreme Cloud.

Switch Specifications Extreme Networks 200-Series (220-12t-10GE2):

Ports
  • 12 x 10/100/1000BaseT (RJ-45) ports
  • 2 x 10GBASE-X (SFP+) unpopulated ports
  • 1 x Serial console port RJ-45
  • 1 x 10/100Base-T out-of-band management port

Performance

64 Gbps

47.6 Mpps

Power

Internal

PoE Power

N/A

Weight

1.51 kg (3.33 lbs)

Dimensions

4.4 cm (H) x 20.9 cm (W) x 25.5 cm (D) 1.73” (H) x 8.23” (W) x 10.1” (D)

Minimum Heat Dissipation (BTU/HR)

39

Minimum Power Consumption (Watts)

12

Maximum* Heat Dissipation (BTU/HR)

65

Maximum* Power Consumption (Watts)

19

You can also order additional equipment for the switch Extreme Networks 800-Series (220-12t-10GE2). Check the price and availability you can have managers.
