Switch Series HPE Comware - These are turnkey networking solutions that support both traditional and evolving data center architectures..
Switching units of data centers based on HPE Comware!
Switch Models HPE Comware differentiate themselves from their predecessors by increased network performance, reliability and scalability in the data center, campuses and branch offices of various institutions.
The devices are based on a modular operating system Comware, these switches provide enterprise-class availability, they support complex EVPN-based deployments, and VXLAN and provide superior security with encryption MACsec.
Automated, multi-vendor and proactive network management!
As network management becomes more complex and the risks associated with a compromised data stream increase, switches not only provide increased performance, but also protect your personal data and information of your customers as much as possible..
HPE Intelligent Management Center (IMC) provides end-to-end management of multiple service providers at once across branch, campus, and data center networks, scaling to tens of thousands of devices. IMC converts junk network data into useful information to keep you running at the highest possible performance level.
Specifications switch Aruba (HPE) FlexNetwork R8N49A:
|

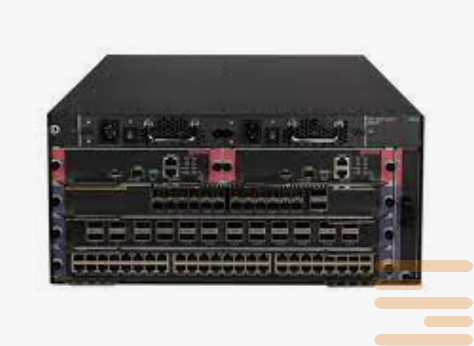

Datasheet HPE FlexNetwork 7503X Ethernet Switch Chassis (R8N49A)
|
|
Specifications
|
|
Included accessories
|
1 HPE 7503X Fan Tray Assembly (R8N61A)
|
|
I/O ports and slots
|
3 I/O module slots
Supports a maximum of 12 100 GbE ports or 72 40GbE ports or 144 10GbE ports or 144 1GbE ports or 144 Fiber Ethernet ports, or a combination
|
|
Additional ports and slots
|
2 switch fabric slots
|
|
Power supplies
|
2 power supply slots
1 minimum power supply required (ordered separately)
|
|
Fan tray
|
includes: 1 x R8N61A
1 fan tray slot
|
|
Physical characteristics
|
|
Dimensions
|
17.17 (w) x 16.54 (d) x 8.5 (h) in
43.6 (w) X 42 (d) X 21.6 (h) cm (5 RU height)
|
|
Weight
|
< 35 kg shipping weight
|
|
Mounting and enclosure
|
Mounts in an EIA-standard 19 in. rack or other equipment cabinet (hardware included); Horizontal surface mounting only
|
|
Reliability
|
Availability: 99.999%
|
|
Environment
|
|
Operating temperature
|
32°F to 113°F (0°C to 45°C)
|
|
Operating relative humidity
|
10% to 95%, noncondensing
|
|
Non-operating/Storage temperature
|
-40°F to 158°F (-40°C to 70°C)
|
|
Non-operating/Storage relative humidity
|
5% to 95%, noncondensing
|
|
Acoustic
|
Low-speed fan: 52.2 dB, High-speed fan: 56.0 dB
|
|
Electrical characteristics
|
|
Frequency
|
50/60 Hz
|
|
Voltage
|
100 - 120 / 200 - 240 VAC
rated -48 to -60 VDC, rated (depending on power supply chosen)
|
|
Current
|
10A/54A
|
|
Power output
|
650W
|
|
Safety
|
UL 62368-1; IEC 62368-1; CAN/CSA-C22.2 No. 62368-1; EN 62368-1/A11UL
|
|
Emissions
|
VCCI Class A; FCC Part 15 Subpart B Class A; ICES-003 Class A; EN 55032 CLASS A; CISPR 32 CLASS A; AS/NZS CISPR 32 Class A; EN 61000-3-2; EN 61000-3-3
|
|
Management
|
IMC - Intelligent Management Center; Command-line interface; Web browser; Out-of-band management (serial RS-232c); SNMP manager; Telnet; Terminal interface (serial RS-232c); Modem interface; IEEE 802.3 Ethernet mib; Ethernet interface mib. Supported IMC versions are: iMC BIMS 7.3 (E0501) iMC EAD 7.3 (E0502). iMC EIA 7.3 (E0503), iMC MVM 7.3 (E0501). iMC NTA 7.3(E0502, iMC PLAT 7.3 (E0705), iMC QoSM 7.3 (E0502), iMC SHM 7.3 (E0502P04), iMC UBA 7.3(E0502)
|
