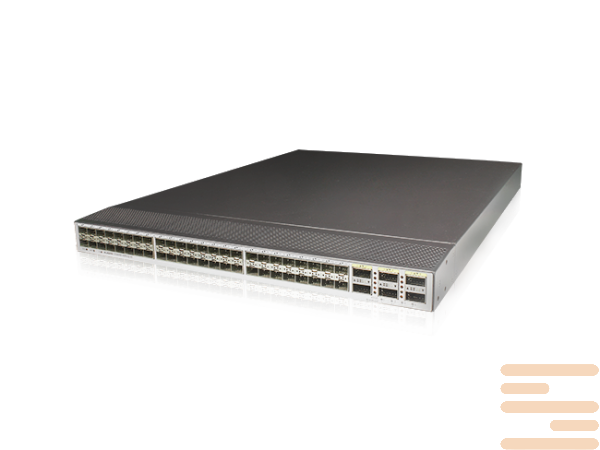

Switch Huawei 6860-SAN
171111 $
switches Huawei CloudEngine 6800 series have the highest density of 10GE ports in ToR-switchboard 1U (up to 64 ports) and the highest overall capacity for ToR-form factor switches 1U — 1,28 Tbit/With.
Switch series 10 GE CloudEngine 6800 (CE6800) Huawei provides high throughput and low latency for data centers and high-speed campus networks. Four 40 GE uplink ports ensure exceptional performance when connecting to core switches using the protocol network TRILL (Transparent Interconnection of Lots of Links).
Specifications switch Huawei 6860-SAN:
|
Parameters |
CloudEngine 6860-SAN |
CloudEngine 8850-SAN |
|
Downlink Ports2 |
24 x 10 GE SFP+/25 GE SFP28 ports or 48 x 10 GE SFP+/25 GE SFP28 ports or 48 x 50 GE SFP56 ports |
32 x 40 GE QSFP+/100 GE QSFP28 ports or 32 x 200 GE QSFP56 ports |
|
Uplink Ports2 |
8 x 100 GE QSFP28 ports or 8 x 200 GE QSFP56 ports |
8 x 400 GE QSFP-DD |
|
Switching Capacity |
8 Tbit/s |
19.2 Tbit/s |
|
Forwarding Rate |
2400 mpps |
7200 mpps |
|
Buffer |
64 MB |
64 MB |
|
Reliability |
LACP BFD for BGP, IS-IS, OSPF, static route, and VXLAN Hardware-based BFD |
|
|
O&M |
1588v2 Telemetry Netstream ERSPAN+ IOAM AnyFlow Intelligent Traffic Analysis |
|
|
Data Center Features |
VXLAN routing and bridging BGP EVPN M-LAG |
|
|
Intelligent and Lossless Network |
AI ECN PFC Deadlock Prevention iNOF NPCC (Network-based Proactive Congestion Control) ECN Overlay iQCN (intelligent Quantized Congestion Notification) |
|
|
Maximum Power Consumption |
48 x 50 GE + 8 x 200 GE: 619 W (100% traffic load, all downlink ports with 2 W 50 GE optical modules, all uplink ports with 6.5 W 200 GE optical modules, 40°C, dual power modules) 48 x 25 GE + 8 x 100 GE: 544 W (100% traffic load, all downlink ports with 1.5 W 25 GE optical modules, all uplink ports with 5 W 100 GE optical modules, 40°C, dual power modules) |
32 x 200 GE + 8 x 400 GE: 1152 W (100% traffic load, all downlink ports with 2 W 50 GE optical modules, all uplink ports with 6.5 W 200 GE optical modules, 40°C, dual power modules) 32 x 100 GE + 8 x 400 GE: 973 W (100% traffic load, all downlink ports with 1.5 W 25 GE optical modules, all uplink ports with 5 W 100 GE optical modules, 40°C, dual power modules) |
|
Power Supply |
600 W AC & 240 V DC 1200 W AC & 240 V DC 1000 W –48 V DC 1200 W HVDC |
1200 W AC |
|
Operating Voltage |
AC: 90–290 V HDC: 240 V (188–288 V) 380 V (188–400 V) DC: –38.4 V to –72 V |
AC: 90–290 V |
| condition | new |
|---|
