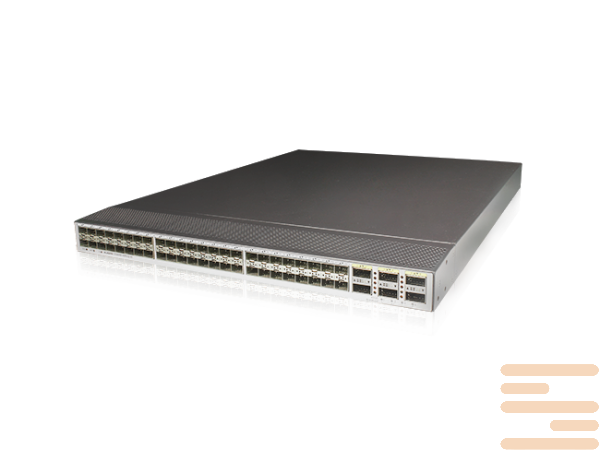

switches Huawei CloudEngine 6800 series have the highest density of 10GE ports in ToR-switchboard 1U (up to 64 ports) and the highest overall capacity for ToR-form factor switches 1U — 1,28 Tbit/With.
Switch series 10 GE CloudEngine 6800 (CE6800) Huawei provides high throughput and low latency for data centers and high-speed campus networks. Four 40 GE uplink ports ensure exceptional performance when connecting to core switches using the protocol network TRILL (Transparent Interconnection of Lots of Links).
Specifications switch Huawei 6863E-48S6CQ:
|
Parameters
|
CloudEngine 6863-48S6CQ
|
CloudEngine 6863E-48S6CQ
|
|
Downlink Ports
|
48 x 10/25 GE SFP28
|
48 x 10/25 GE SFP28
|
|
Uplink Ports
|
6 x 40/100 GE QSFP28
|
6 x 40/100 GE QSFP28
|
|
Switching Capacity
|
3.6 Tbit/s
|
3.6 Tbit/s
|
|
Forwarding Performance
|
940 mpps
|
940 mpps
|
|
Buffer
|
42 MB
|
42 MB
|
|
Reliability
|
LACP
Microsegmentation
Hardware-based BFD
|
LACP
Microsegmentation
Hardware-based BFD
|
|
O&M
|
Telemetry
Netstream
sFlow
ERSPAN+
|
Telemetry
Netstream
sFlow
ERSPAN+
|
|
Data Center Features
|
VXLAN routing and bridging
BGP EVPN
M-LAG
PFC and ECN
|
VXLAN routing and bridging
BGP EVPN
M-LAG
PFC and ECN
|
|
Maximum Power Consumption
|
349 W
|
384W
|
|
Power Supply
|
600W AC&240V DC
1000W -48V DC
1200W HVDC
|
600W AC&240V DC
1000W -48V DC
1200W HVDC
|
|
Operating Voltage
|
AC: 90V～290V
DC: -38.4V～-72V
240V HVDC: 190V～290V
380V HVDC : 190V～400V
|
AC: 90V～290V
DC: -38.4V～-72V
240V HVDC: 190V～290V
380V HVDC : 190V～400V
|
