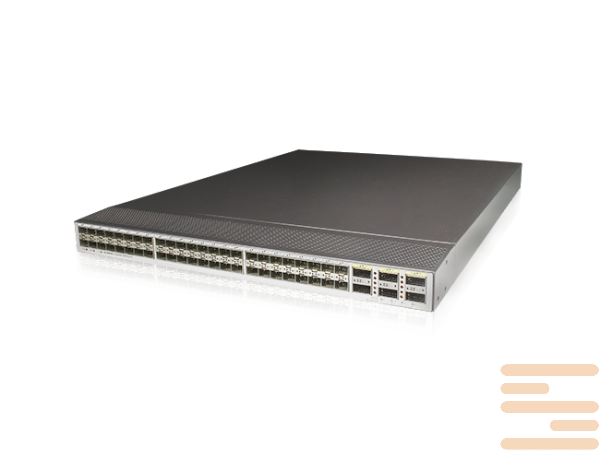

Switch Huawei 6866-48S8CQ-P
switches Huawei CloudEngine 6800 series have the highest density of 10GE ports in ToR-switchboard 1U (up to 64 ports) and the highest overall capacity for ToR-form factor switches 1U — 1,28 Tbit/With.
Switch series 10 GE CloudEngine 6800 (CE6800) Huawei provides high throughput and low latency for data centers and high-speed campus networks. Four 40 GE uplink ports ensure exceptional performance when connecting to core switches using the protocol network TRILL (Transparent Interconnection of Lots of Links).
Specifications switch Huawei 6866-48S8CQ-P:
|
Parameters |
CloudEngine 6866-48S8CQ-P |
|
Downlink Ports2 |
48 x 10/25 GE SFP28 or 48 x 50 GE SFP56 |
|
Uplink Ports2 |
8 x 40/100 GE QSFP28 or 8 x 200 GE QSFP56 |
|
Switching Capacity |
8 Tbit/s |
|
Forwarding Performance |
2175 mpps |
|
Buffer |
64 MB |
|
Reliability |
LACP Hardware-based BFD |
|
O&M |
Telemetry Netstream ERSPAN+ AnyFlow Intelligent Traffic Analysis Packet Event |
|
Data Center Features |
VXLAN routing and bridging BGP EVPN M-LAG |
|
Intelligent and Lossless Network |
AI ECN PFC Deadlock Prevention ECN Overlay iQCN |
|
Maximum Power Consumption |
48 x 50 GE + 8 x 200 GE: 619 W 48 x 25 GE + 8 x 100 GE: 544 W |
|
Power Supply |
600W AC&240V DC 1000W -48V DC 1200W HVDC |
|
Operating Voltage |
AC: 90V～290V DC: -38.4V～-72V 240V HVDC: 190V～290V 380V HVDC : 190V～400V |
| condition | new |
|---|
