System Specifications
|

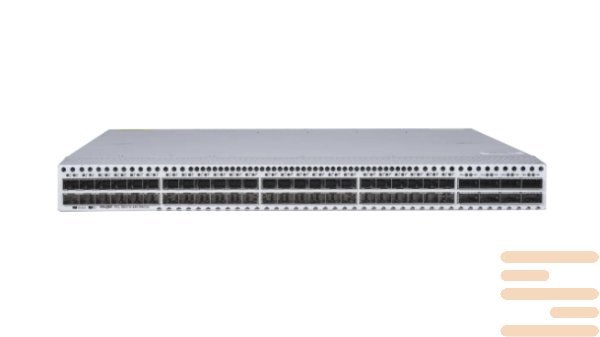

6855-48XS8CQ
|
|
Ports
|
48 x 10GE ports and 8 x 100GE ports
|
|
Expansion Modules
|
Power supply module slots
Fan module slots
|
|
Management Port
|
One management port, one console port, and one USB port (compliant with the USB2.0 standard)
|
|
Switching Capacity
|
2.56Tbps
|
|
Packet Forwarding Rate
|
1920 Mpps
|
|
802.1Q VLAN
|
4094
|
|
Dimensions and Weight
|
RG-S6250-48XS8CQ
|
|
Dimensions
(W × D × H)
|
442 mm × 387 mm × 44 mm (17.40 in. x 15.24 in. x 1.73 in.), 1 RU
|
|
Weight
|
8 kg (17.64 lbs., including two power supply modules and four fan modules)
|
|
Power Supply and Consumption
|
RG-S6250-48XS8CQ
|
|
AC
|
Rated voltage range: 100 V AC to 240 V AC
Maximum voltage range: 90 V AC to 264 V AC
Frequency: 50 Hz to 60 Hz
Rated input current: 3.5 A to 7.2 A
|
|
High-Voltage DC (HVDC)
|
Input voltage range: 192 V DC to 288 V DC
Rated input current: 3.6 A
|
|
Low-Voltage DC (LVDC)
|
Input voltage range: –42 V DC to –72 V DC
Rated input voltage: –48 V DC
Rated input current: 23 A
|
|
Maximum Power Consumption
|
300 W
|
|
Environment and Reliability
|
RG-S6250-48XS8CQ
|
|
Operating Temperature
|
0°C to 45°C (32°F to 113°F)
|
|
Storage temperature
|
-40 °C to 70 °C (-40 °F to 158 °F)
|
|
Operating Humidity
|
10% to 90% RH (Non-condensing)
|
|
Storage humidity
|
5% to 95% RH (non-condensing)
|
|
Working altitude
|
Operating altitude: up to 5000 m (16,404.20 ft.)
Storage altitude: up to 5000 m (16,404.20 ft.)
|
