Switch Huawei CloudEngine CE16800-X16
SKU
CE16800-X16
EAN:
21423
Condition:
new
Stock:
available on order
Lead time:
25-35 days
Huawei CloudEngine CE16800-X16 VXLAN routing and bridging, BGP-EVPN, M-LAG
Category: Huawei Switch

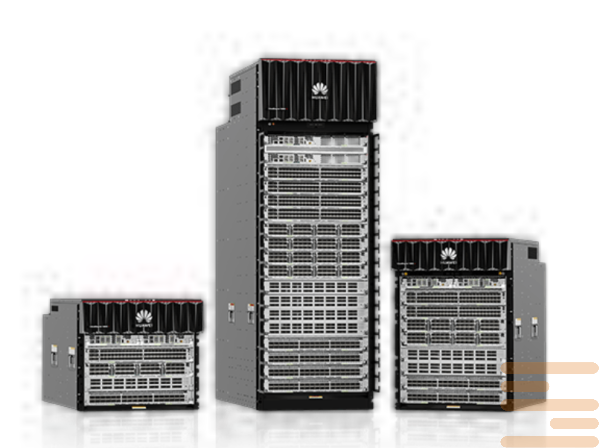

Huawei CloudEngine 16800 – These are new high -tech switches for data processing centers. CloudEngine 16800 Applies a unique innovative Ilossless innovative algorithm that studies and teaches, and adjusts traffic on the real -time network, thereby implementing network adaptation and self -optimization. With zero packet loss and E2E delay of μs, the highest possible throughput is achieved.
Switching capacity of hardware devices 173/1548 TbIT/s, they support smooth evolution up to 400 GE taking into account the inevitable demand for digital traffic.
Specifications of the switch Huawei CloudEngine CE16800-X16:| Specification | Detail |
|---|---|
| Product Name / Model | Huawei CloudEngine CE16800-X16 |
| Series | CloudEngine 16800 |
| Form Factor | Modular chassis |
| Dimensions (H x W x D) | 1436 mm × 483 mm × 1144 mm (32.3U) |
| Weight | Approximately 273.8 kg |
| Switching Capacity | 714/1548 Tbps |
| Forwarding Performance | 104,400 Mpps |
| Service Slots | 16 |
| Switching Fabric Module Slots | 9 |
| Fabric Architecture | Clos architecture, cell switching, VoQ |
| Airflow Design | Strict front-to-back airflow design |
| Virtualization | VXLAN routing and bridging, BGP-EVPN, M-LAG |
| Power Supply Options | AC and high-voltage DC |
| Maximum Power Consumption | 60,000 W |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | –40°C to 70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Rack Units (RU) | 32.3U |
| Compliance | Designed for data center environments |
| condition | new |
|---|
