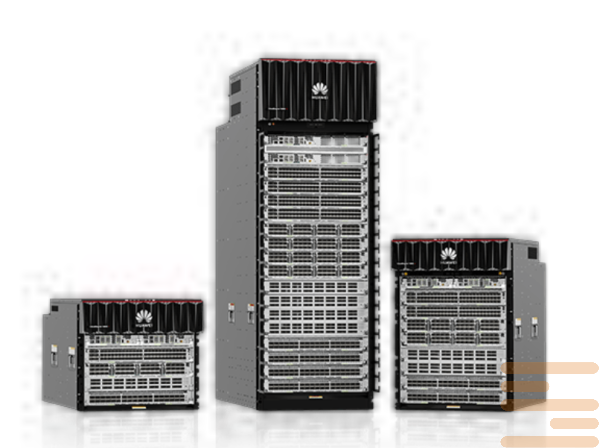

Switch Huawei CloudEngine CE16800-X8
SKU
CE16800-X8
EAN:
21422
Condition:
new
Stock:
available on order
Lead time:
25-35 days
Huawei CloudEngine CE16800-X8 AC and high-voltage DC options
Category: Huawei Switch
Huawei CloudEngine 16800 – These are new high -tech switches for data processing centers. CloudEngine 16800 Applies a unique innovative Ilossless innovative algorithm that studies and teaches, and adjusts traffic on the real -time network, thereby implementing network adaptation and self -optimization. With zero packet loss and E2E delay of μs, the highest possible throughput is achieved.
Switching capacity of hardware devices 173/1548 TbIT/s, they support smooth evolution up to 400 GE taking into account the inevitable demand for digital traffic.
Specifications of the switch Huawei CloudEngine CE16800-X8:| Specification | Detail |
|---|---|
| Product Name / Model | Huawei CloudEngine CE16800-X8 |
| Series | CloudEngine 16800 |
| Form Factor | Modular chassis |
| Dimensions (H x W x D) | 703 mm × 483 mm × 985 mm (15.8U) |
| Weight | Approximately 129.8 kg (without packaging) |
| Switching Capacity | 357 Tbps (non-blocking) |
| Forwarding Performance | 52,200 Mpps |
| Service Slots | 8 |
| SFU Slots | 9 |
| Power Supply | AC and high-voltage DC options |
| Maximum Power Consumption | 30,000 W |
| Cooling | Front-to-back airflow with redundant fan modules |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | –40°C to 70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Rack Units (RU) | 15.8U |
| Compliance | Designed for data center environments |
| Management | CLI, SNMP, Web |
| IPv6 Support | Yes |
| iLossless Algorithm | Yes |
| Intelligent O&M | Yes |
| Modular Design | Yes |
| Redundancy | Dual power supplies, fan modules, and control planes |
| Airflow Design | Front-to-back |
| Network Architecture | Clos architecture |
| Maximum Ports | Supports up to 400GE interfaces |
| condition | new |
|---|
