Switch Huawei CloudEngine CE5882-48T4S
SKU
CE5882-48T4S
EAN:
21454
Condition:
new
Stock:
available on order
Lead time:
25-35 days

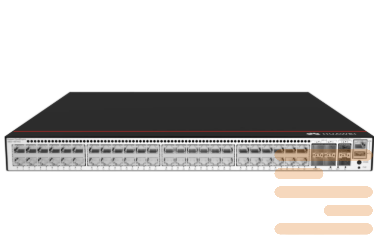

Huawei CloudEngine CE5882-48T4S 48 × 10/100/1000BASE-T (RJ45)
Category: Huawei Switch
Switches Huawei CloudEngine 5800 The series is equipped with 48 1Ge ports and external ports 10ge and 40Ge to combine in stack up to 16 switches. 40GE ports allow you to create a stack of non-blocking switches that covers the physical distance between data centers.
Series switches CE5800 Supports technology TRILL, which provides service delivery flexibility and large-scale virtual machine migrations. System software VRP HUAWEI companies and comprehensive security functions provide reliable and uninterrupted operation and high performance with low cost of operation and maintenance.
Specifications of the switch Huawei CE5882-48T4S:
| Feature | Specification |
|---|---|
| Model | Huawei CloudEngine CE5882-48T4S |
| Form Factor | 1 RU, rack-mounted |
| Downlink Ports | 48 × 10/100/1000BASE-T (RJ45) |
| Uplink Ports | 4 × 10GE SFP+ |
| Console Port | RJ45 console port |
| CPU / Processing | Multi-core CPU |
| Memory & Storage | DRAM: 2 GB; Flash: 2 GB |
| Dimensions (W × D × H) | 442.0 × 420.0 × 43.6 mm |
| Weight (device only) | ~ 6.2 kg (excluding power/fan/optical modules) |
| Power Supply Modules | Dual pluggable AC/DC |
| Redundancy | 1+1 power backup |
| Power Consumption (Static) | ~ 70 W |
| Power Consumption (Typical) | ~ 95–110 W |
| Power Consumption (Maximum) | ~ 140 W |
| Heat Dissipation (Static) | ~ 240 BTU/hr |
| Heat Dissipation (Typical) | ~ 370 BTU/hr |
| Heat Dissipation (Maximum) | ~ 480 BTU/hr |
| Number of Fan Modules | 3 hot-swappable fans |
| Airflow Direction Options | Port-side intake or exhaust (depends on module choice) |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 132 Mpps |
| System Buffer | 32 MB |
| RTC | Supported |
| USB Deployment | Supported |
| Log Backup | Supported |
| Stacking | Supported (up to 9 devices with iStack technology) |
| Noise (at ~27 °C) | 46–51 dB(A) |
| Operating Conditions | Temp: 0–45 °C; Humidity: 5–95% (non-condensing); Altitude ≤ 5000 m |
| condition | new |
|---|
