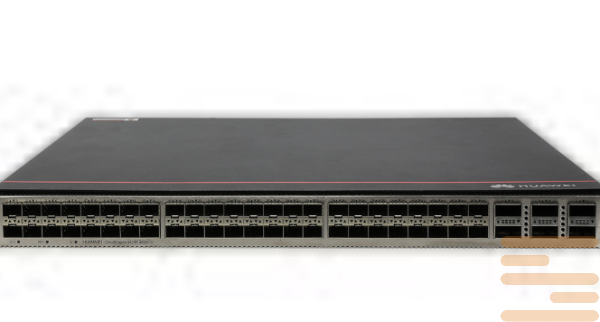

Switch Huawei CloudEngine CE6820-48S6CQ-A
SKU
CE6820-48S6CQ-A
EAN:
21440
Condition:
new
Stock:
available on order
Lead time:
25-35 days
Huawei CloudEngine CE6820-48S6CQ-A 48 × 10GE SFP+ 6 × 100GE QSFP28 Quad-core, 1.4 GHz
Category: Huawei Switch
Switches Huawei CloudEngine 6800 series have the highest port density 10GE ToR-switch 1U (up to 64 ports) and the highest total capacity for ToR-Commander of the form factor 1U — 1,28 TbIT/with.
A series of switches 10 GE CloudEngine 6800 (CE6800) Huawei Provides high bandwidth and low delay for data centers and high -speed campus networks. Four 40 GE uplink ports guarantee exceptional performance when connecting to backbone switches via the TRILL (Transparent Interconnection of Lots of Links).
Specifications of the switch Huawei CE6820-48S6CQ-A:
| Specification | Detail |
|---|---|
| Product Name / Model | Huawei CloudEngine CE6820-48S6CQ-A |
| Type | Fixed Data Center Switch |
| Switching Capacity | 2.16 Tbps |
| Forwarding Performance | 470 Mpps |
| Ports | • 48 × 10GE SFP+ • 6 × 100GE QSFP28 |
| CPU | Quad-core, 1.4 GHz |
| Memory | DRAM: 4 GB |
| Storage | NOR Flash: 64 MB; NAND Flash: 4 GB |
| Buffer | 21 MB |
| Dimensions (H × W × D) | 43.6 mm × 442 mm × 500 mm |
| Weight | ~6.5 kg (chassis only) |
| Power Supply | • 2 × 600W AC hot-swappable power modules • 1+1 redundancy |
| Input Voltage | AC: 100 V – 240 V (50/60 Hz); DC: -48 V to -60 V |
| Power Consumption | • Typical: 162 W • Maximum: 282 W |
| Airflow / Cooling | Front-to-back airflow; hot-swappable fan modules |
| Operating Temperature | 0 °C to +45 °C |
| Storage Temperature | –40 °C to +70 °C |
| Humidity | 5% – 95% (non-condensing) |
| Altitude | Up to 5,000 m |
| Reliability | • Power modules: 1+1 redundancy • Fan modules: N+1 redundancy • Hot-swappable components |
| condition | new |
|---|
