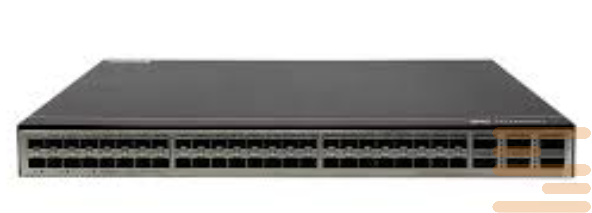

Switch Huawei CloudEngine CE6820H-48S6CQ
SKU
CE6820H-48S6CQ
EAN:
21439
Condition:
new
Stock:
available on order
Lead time:
25-35 days
Huawei CloudEngine CE6820H-48S6CQ 48 × 25GE SFP28 6 × 100GE QSFP28 Multi-core CPU, 1.6–2.0 GHz
Category: Huawei Switch
Switches Huawei CloudEngine 6800 series have the highest port density 10GE ToR-switch 1U (up to 64 ports) and the highest total capacity for ToR-Commander of the form factor 1U — 1,28 TbIT/with.
A series of switches 10 GE CloudEngine 6800 (CE6800) Huawei Provides high bandwidth and low delay for data centers and high -speed campus networks. Four 40 GE uplink ports guarantee exceptional performance when connecting to backbone switches via the TRILL (Transparent Interconnection of Lots of Links).
Specifications of the switch Huawei CE6820H-48S6CQ:
| Specification | Detail |
|---|---|
| Product Name / Model | Huawei CloudEngine CE6820H-48S6CQ |
| Type | Fixed Data Center Switch |
| Switching Capacity | 3.2 Tbps |
| Forwarding Performance | 2,400 Mpps |
| Ports | • 48 × 25GE SFP28 • 6 × 100GE QSFP28 |
| CPU | Multi-core CPU, 1.6–2.0 GHz |
| Memory | DRAM: 8 GB |
| Storage | Flash: 64 MB × 2; SSD: 120 GB |
| Buffer | 16 MB |
| Dimensions (H × W × D) | 43.6 mm × 442 mm × 450 mm |
| Weight | ~10 kg (fully loaded with power modules and fans) |
| Power Supply | Pluggable AC / HVDC modules, 400 W each, 1+1 redundancy |
| Input Voltage | AC: 100 V – 240 V (50/60 Hz); HVDC: 190 V – 290 V |
| Power Consumption | Typical: ~420 W; Maximum: ~650 W |
| Airflow / Cooling | Front-to-back or back-to-front airflow; hot-swappable fan modules |
| Operating Temperature | 0 °C to +45 °C (0–1800 m altitude) |
| Storage Temperature | –40 °C to +70 °C |
| Humidity | 5% – 95% (non-condensing) |
| Altitude | Up to 5,000 m (temperature derating above 1,800 m) |
| Noise Level | < 60 dB(A) at 27 °C |
| Reliability | Power modules: 1+1 redundancy; Fan modules: N+1 redundancy; Hot-swappable components |
| condition | new |
|---|
