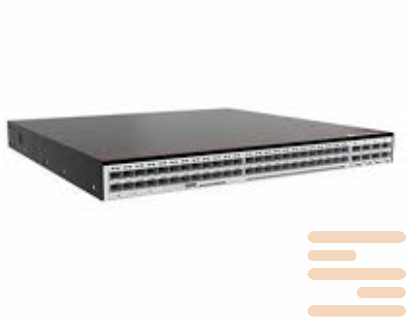

Switch Huawei CloudEngine CE6855-48XS8CQ
SKU
CE6855-48XS8CQ
EAN:
21438
Condition:
new
Stock:
available on order
Lead time:
25-35 days
Huawei CloudEngine CE6855-48XS8CQ 48 × 25GE SFP28 8 × 100GE QSFP28
Category: Huawei Switch
Switches Huawei CloudEngine 6800 series have the highest port density 10GE ToR-switch 1U (up to 64 ports) and the highest total capacity for ToR-Commander of the form factor 1U — 1,28 TbIT/with.
A series of switches 10 GE CloudEngine 6800 (CE6800) Huawei Provides high bandwidth and low delay for data centers and high -speed campus networks. Four 40 GE uplink ports guarantee exceptional performance when connecting to backbone switches via the TRILL (Transparent Interconnection of Lots of Links).
Specifications switch Huawei CE6855-48XS8CQ:
| Specification | Detail |
|---|---|
| Product Name / Model | Huawei CloudEngine CE6855-48XS8CQ |
| Type | Fixed Data Center Switch |
| Switching Capacity | 6.4 Tbps |
| Forwarding Performance | 4,800 Mpps |
| Ports | • 48 × 25GE SFP28 • 8 × 100GE QSFP28 |
| CPU | Multi-core CPU, 2.0 GHz |
| Memory | DRAM: 8 GB |
| Storage | Flash: 64 MB × 2; SSD: 120 GB |
| Buffer | 32 MB |
| Dimensions (H × W × D) | 43.6 mm × 442 mm × 500 mm |
| Weight | ~12 kg (fully loaded with power modules and fans) |
| Power Supply | Pluggable AC / HVDC modules, 600 W each, 1+1 redundancy |
| Input Voltage | AC: 100 V – 240 V (50/60 Hz); HVDC: 190 V – 290 V |
| Power Consumption | Typical: ~550 W; Maximum: ~800 W |
| Airflow / Cooling | Front-to-back or back-to-front airflow; hot-swappable fan modules |
| Operating Temperature | 0 °C to +45 °C (0–1800 m altitude) |
| Storage Temperature | –40 °C to +70 °C |
| Humidity | 5% – 95% (non-condensing) |
| Altitude | Up to 5,000 m (temperature derating above 1,800 m) |
| Noise Level | < 65 dB(A) at 27 °C |
| Reliability | Power modules: 1+1 redundancy; Fan modules: N+1 redundancy; Hot-swappable components |
| condition | new |
|---|
