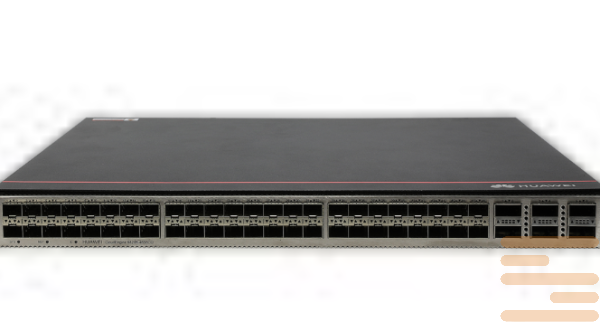

Switch Huawei CloudEngine CE6863E-48S6CQ
SKU
CE6863E-48S6CQ
€32,908.95
EAN:
21451
Condition:
new
Stock:
available on order
Lead time:
25-35 days
GPL price:
54127 $
CE6863E-48S6CQ switch (48 * 25Ge SFP28, 6 * 100GE QSFP28, no power fan).
Category: Huawei Switch
Switches Huawei CloudEngine 6800 series have the highest port density 10GE ToR-switch 1U (up to 64 ports) and the highest total capacity for ToR-Commander of the form factor 1U — 1,28 TbIT/with.
A series of switches 10 GE CloudEngine 6800 (CE6800) Huawei Provides high bandwidth and low delay for data centers and high -speed campus networks. Four 40 GE uplink ports guarantee exceptional performance when connecting to backbone switches via the TRILL (Transparent Interconnection of Lots of Links).
Specifications of the switch Huawei CE6863E-48S6CQ:
| Feature | Specification |
|---|---|
| Model | Huawei CloudEngine CE6863E-48S6CQ |
| Form Factor | 1 RU, rack-mounted |
| Downlink Ports | 48 × 25GE SFP28 (backward compatible with 10GE SFP+) |
| Uplink Ports | 6 × 100GE QSFP28 (configurable to 40GE; breakout supported) |
| Console Port | RJ45 console port |
| CPU / Processing | Multi-core CPU, 2.0 GHz |
| Memory & Storage | DRAM: 16 GB; Flash: 2 × 64 MB NOR; 4 GB NAND/SSD Flash |
| Dimensions (W × D × H) | 442.0 × 600.0 × 43.6 mm |
| Weight (device only) | ~ 8.5 kg (excluding optical modules, power modules, and fan modules) |
| Power Supply Modules | Dual pluggable AC / DC / HVDC |
| Redundancy | 1+1 power backup |
| Power Consumption (Static) | ~ 190 W |
| Power Consumption (Typical) | ~ 210–230 W |
| Power Consumption (Maximum) | ~ 320–350 W |
| Heat Dissipation (Static) | ~ 650 BTU/hr |
| Heat Dissipation (Typical) | ~ 780 BTU/hr |
| Heat Dissipation (Maximum) | ~ 1190 BTU/hr |
| Number of Fan Modules | 5 hot-swappable fans |
| Airflow Direction Options | Port-side intake or exhaust (depends on fan/power modules) |
| Switching Capacity | 4.8 Tbps |
| Forwarding Rate | ~ 2,000 Mpps |
| System Buffer | 32 MB |
| RTC | Supported |
| USB Deployment | Supported |
| Log Backup | Supported |
| Stacking | Supported (up to 16 devices) |
| Noise (at ~27 °C) | 52–59 dB(A), depending on airflow |
| Operating Conditions | Temp: 0–45 °C; Humidity: 5–95% (non-condensing); Altitude ≤ 5000 m |
| condition | new |
|---|
