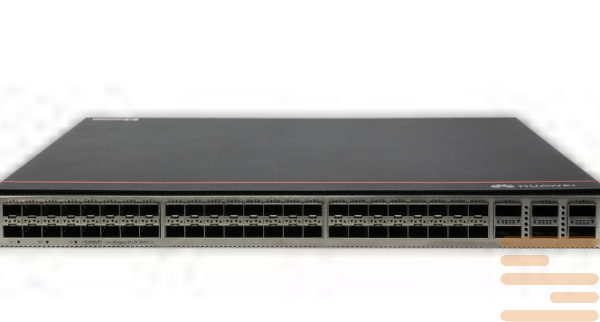

Switch Huawei CloudEngine CE6863H-48S6CQ
SKU
CE6863H-48S6CQ
EAN:
21452
Condition:
new
Stock:
available on order
Lead time:
25-35 days
Huawei CloudEngine CE6863H-48S6CQ 48 × 25GE SFP28 (compatible with 10GE SFP+)
Category: Huawei Switch
Switches Huawei CloudEngine 6800 series have the highest port density 10GE ToR-switch 1U (up to 64 ports) and the highest total capacity for ToR-Commander of the form factor 1U — 1,28 TbIT/with.
A series of switches 10 GE CloudEngine 6800 (CE6800) Huawei Provides high bandwidth and low delay for data centers and high -speed campus networks. Four 40 GE uplink ports guarantee exceptional performance when connecting to backbone switches via the TRILL (Transparent Interconnection of Lots of Links).
Specifications of the switch Huawei CE6863H-48S6CQ:
| Feature | Specification |
|---|---|
| Model | Huawei CloudEngine CE6863H-48S6CQ |
| Form Factor | 1 RU, rack-mounted |
| Downlink Ports | 48 × 25GE SFP28 (compatible with 10GE SFP+) |
| Uplink Ports | 6 × 100GE QSFP28 (configurable to 40GE; breakout supported) |
| Console Port | RJ45 console port |
| CPU / Processing | Multi-core CPU, 2.2 GHz |
| Memory & Storage | DRAM: 16 GB; Flash: 2 × 64 MB NOR; 4 GB NAND/SSD Flash |
| Dimensions (W × D × H) | 442.0 × 600.0 × 43.6 mm |
| Weight (device only) | ~ 9.0 kg (excluding power, fans, optical modules) |
| Power Supply Modules | Dual pluggable AC / DC / HVDC |
| Redundancy | 1+1 power backup |
| Power Consumption (Static) | ~ 200 W |
| Power Consumption (Typical) | ~ 230–250 W |
| Power Consumption (Maximum) | ~ 360 W |
| Heat Dissipation (Static) | ~ 680 BTU/hr |
| Heat Dissipation (Typical) | ~ 820 BTU/hr |
| Heat Dissipation (Maximum) | ~ 1230 BTU/hr |
| Number of Fan Modules | 5 hot-swappable fans |
| Airflow Direction Options | Port-side intake or exhaust (depending on fan/power modules) |
| Switching Capacity | 7.2 Tbps |
| Forwarding Rate | ~ 2,500 Mpps |
| System Buffer | 64 MB |
| RTC | Supported |
| USB Deployment | Supported |
| Log Backup | Supported |
| Stacking | Supported (up to 16 devices) |
| Noise (at ~27 °C) | 55–61 dB(A), depending on airflow |
| Operating Conditions | Temp: 0–45 °C; Humidity: 5–95% (non-condensing); Altitude ≤ 5000 m |
| condition | new |
|---|
