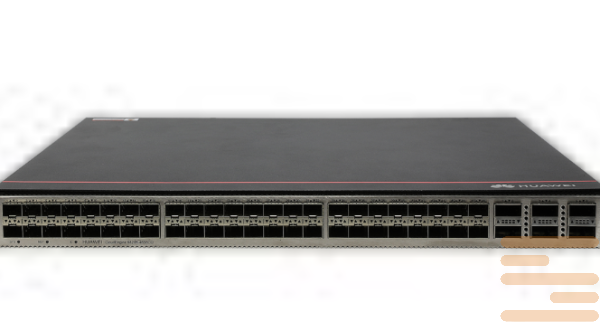

Switch Huawei CloudEngine CE6870-48S6CQ-EI-A
SKU
CE6870-48S6CQ-EI-A
EAN:
21441
Condition:
new
Stock:
available on order
Lead time:
25-35 days
Huawei CloudEngine CE6870-48S6CQ-EI-A 48 × 10GE SFP+ DRAM: 4 GB; NOR Flash: 64 MB; NAND Flash: 4 GB 6 × 100GE QSFP28
Category: Huawei Switch
Switches Huawei CloudEngine 6800 series have the highest port density 10GE ToR-switch 1U (up to 64 ports) and the highest total capacity for ToR-Commander of the form factor 1U — 1,28 TbIT/with.
A series of switches 10 GE CloudEngine 6800 (CE6800) Huawei Provides high bandwidth and low delay for data centers and high -speed campus networks. Four 40 GE uplink ports guarantee exceptional performance when connecting to backbone switches via the TRILL (Transparent Interconnection of Lots of Links).
Specifications of the switch Huawei CE6870-48S6CQ-EI-A:
| Specification | Detail |
|---|---|
| Product Name / Model | Huawei CloudEngine CE6870-48S6CQ-EI-A |
| Type | Fixed Data Center Switch |
| Switching Capacity | 2.16 Tbps |
| Forwarding Performance | 720 Mpps |
| Ports | • 48 × 10GE SFP+ • 6 × 100GE QSFP28 |
| CPU | 4-core, 1.5 GHz |
| Memory | DRAM: 4 GB; NOR Flash: 64 MB; NAND Flash: 4 GB |
| Buffer | 4 GB (shared among all ports) |
| Dimensions (W × D × H) | 442 mm × 420 mm × 43.6 mm |
| Weight | 8.7 kg (fully loaded) |
| Power Supply | • 2 × 600W AC & 240V DC power modules • 1+1 redundancy |
| Input Voltage | AC: 100 V – 240 V (50/60 Hz); DC: –48 V to –60 V |
| Maximum Power Consumption | 323 W |
| Airflow / Cooling | Front-to-back or back-to-front airflow; hot-swappable fan modules |
| Operating Temperature | 0 °C to +45 °C |
| Storage Temperature | –40 °C to +70 °C |
| Humidity | 5% – 95% (non-condensing) |
| Altitude | Up to 5,000 m |
| Reliability | • Power modules: 1+1 redundancy • Fan modules: N+1 redundancy • Hot-swappable components |
| condition | new |
|---|
