Switch Huawei CloudEngine CE6881H-48S6CQ
SKU
CE6881H-48S6CQ
EAN:
21444
Condition:
new
Stock:
available on order
Lead time:
25-35 days

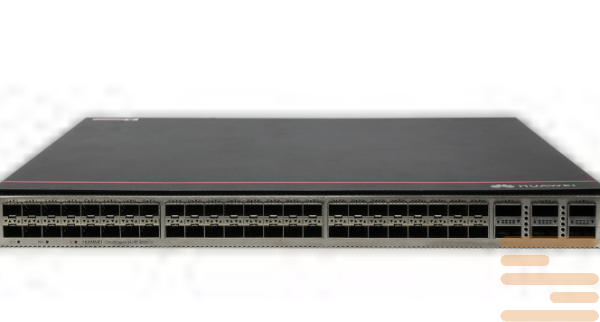

Huawei CloudEngine CE6881H-48S6CQ 48 × 10GE SFP+ 6 × 100GE QSFP28 DRAM: 4 GB; NOR Flash: 64 MB; NAND Flash: 4 GB
Category: Huawei Switch
Switches Huawei CloudEngine 6800 series have the highest port density 10GE ToR-switch 1U (up to 64 ports) and the highest total capacity for ToR-Commander of the form factor 1U — 1,28 TbIT/with.
A series of switches 10 GE CloudEngine 6800 (CE6800) Huawei Provides high bandwidth and low delay for data centers and high -speed campus networks. Four 40 GE uplink ports guarantee exceptional performance when connecting to backbone switches via the TRILL (Transparent Interconnection of Lots of Links).
Specifications of the switch Huawei CE6881H-48S6CQ:
| Specification | Detail |
|---|---|
| Product Name / Model | Huawei CloudEngine CE6881H-48S6CQ |
| Type | Fixed Data Center Switch |
| Switching Capacity | 2.16 Tbps |
| Forwarding Performance | 954 Mpps |
| Ports | • 48 × 10GE SFP+ • 6 × 100GE QSFP28 |
| CPU | Quad-core, 1.4 GHz |
| Memory | DRAM: 4 GB; NOR Flash: 64 MB; NAND Flash: 4 GB |
| Buffer | 42 MB |
| Dimensions (W × D × H) | 442 mm × 420 mm × 43.6 mm |
| Weight | 5.7 kg (chassis only) |
| Power Supply | • 2 × 600W AC & 240V DC power modules • 1+1 redundancy |
| Input Voltage | AC: 100 V – 240 V (50/60 Hz); DC: –48 V to –60 V |
| Maximum Power Consumption | 349 W |
| Airflow / Cooling | Front-to-back or back-to-front airflow; hot-swappable fan modules |
| Operating Temperature | 0 °C to +45 °C |
| Storage Temperature | –40 °C to +70 °C |
| Humidity | 5% – 95% (non-condensing) |
| Altitude | Up to 5,000 m |
| Reliability | • Power modules: 1+1 redundancy • Fan modules: N+1 redundancy • Hot-swappable components |
| condition | new |
|---|
