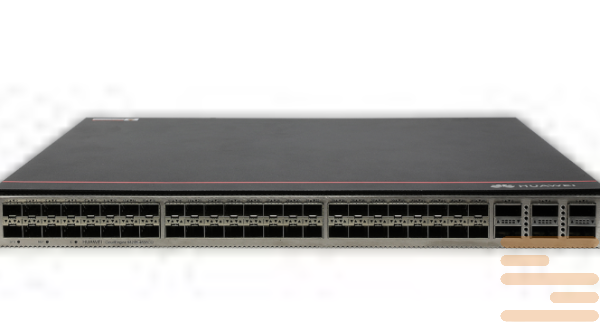

Switch Huawei CloudEngine CE6885-48YS8CQ-T
SKU
CE6885-48YS8CQ-T
EAN:
21447
Condition:
new
Stock:
available on order
Lead time:
25-35 days
Huawei CloudEngine CE6885-48YS8CQ-T (02355KUA) 48 × 25GE SFP28 (configurable to 10GE)
Category: Huawei Switch
Switches Huawei CloudEngine 6800 series have the highest port density 10GE ToR-switch 1U (up to 64 ports) and the highest total capacity for ToR-Commander of the form factor 1U — 1,28 TbIT/with.
A series of switches 10 GE CloudEngine 6800 (CE6800) Huawei Provides high bandwidth and low delay for data centers and high -speed campus networks. Four 40 GE uplink ports guarantee exceptional performance when connecting to backbone switches via the TRILL (Transparent Interconnection of Lots of Links).
Specifications of the switch Huawei CE6885-48YS8CQ-T:
| Feature | Specification |
|---|---|
| Model | Huawei CloudEngine CE6885-48YS8CQ-T (02355KUA) |
| Form Factor | 1U rack-mounted |
| Downlink Ports | 48 × 25GE SFP28 (configurable to 10GE) |
| Uplink Ports | 8 × 100GE QSFP28 (configurable to 40G) |
| Console Port | RJ45 |
| Power Supply | None (requires external power modules) |
| Redundant Power Supply | Not applicable (requires external power modules) |
| Power Consumption | Varies depending on external power modules |
| Heat Dissipation | Varies depending on external power modules |
| Airflow Direction | Not applicable (requires external power modules) |
| Number of Fan Modules | Not applicable (requires external fan modules) |
| Dimensions (W × D × H) | 442 mm × 420 mm × 43.6 mm |
| Weight | 6.36 kg (excluding optical modules, power modules, and fan modules) |
| Switching Capacity | 8 Tbps |
| Forwarding Rate | 1,200 Mpps |
| System Buffer | 32–42 MB |
| CPU | Quad-core 1.4 GHz |
| Memory & Storage | 8 GB DRAM, 64 MB NOR, 4 GB NAND Flash |
| Supported Protocols | VXLAN/BGP-EVPN, M-LAG, MACsec, RoCE, VXLAN OAM, YScale congestion control |
| Congestion Control | PFC, ECN, AI-ECN, YScale |
| Stacking Support | Not supported (reserved function) |
| RTC Support | Not supported (requires external modules) |
| USB Deployment | Not supported (requires external modules) |
| Log Backup | Not supported (requires external modules) |
| condition | new |
|---|
