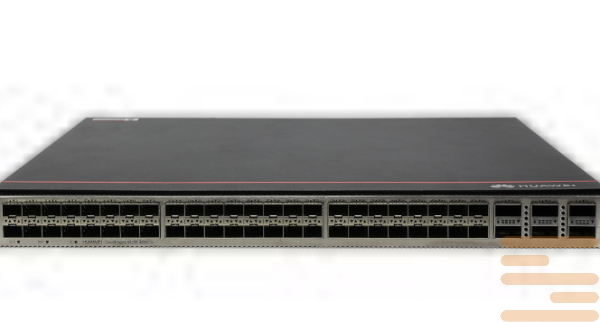

Switch Huawei CloudEngine CE6885-LL-56F
SKU
CE6885-LL-56F
EAN:
21450
Condition:
new
Stock:
available on order
Lead time:
25-35 days
Huawei CloudEngine CE6885-LL-56F 48 × 25GE SFP28 + 8 × 50GE SFP56 (25/50 GE, backward compatible with 10GE)
Category: Huawei Switch
Switches Huawei CloudEngine 6800 series have the highest port density 10GE ToR-switch 1U (up to 64 ports) and the highest total capacity for ToR-Commander of the form factor 1U — 1,28 TbIT/with.
A series of switches 10 GE CloudEngine 6800 (CE6800) Huawei Provides high bandwidth and low delay for data centers and high -speed campus networks. Four 40 GE uplink ports guarantee exceptional performance when connecting to backbone switches via the TRILL (Transparent Interconnection of Lots of Links).
Specifications of the switch Huawei CE6885-LL-56F:
| Feature | Specification |
|---|---|
| Model | Huawei CloudEngine CE6885-LL-56F |
| Form Factor | 1 RU, rack-mounted |
| Downlink Ports | 48 × 25GE SFP28 + 8 × 50GE SFP56 (25/50 GE, backward compatible with 10GE) |
| Uplink Ports | 8 × 100GE QSFP28 / 8 × 200GE QSFP56 (configurable, breakout supported) |
| Console Port | RJ45 console port |
| CPU / Processing | Quad-core, 1.4 GHz |
| Memory & Storage | DRAM: 8 GB; Flash: 64 MB NOR; 4 GB NAND |
| Dimensions (W × D × H) | 442.0 × 420.0 × 43.6 mm |
| Weight (device only) | ~ 6.5–7.0 kg (excluding power/fan/optical modules) |
| Power Supply Modules | Dual pluggable AC / DC / HVDC |
| Redundancy | 1+1 power backup |
| Power Consumption (Static) | ~ 150 W |
| Power Consumption (Typical) | ~ 170–190 W (depending on port usage and modules) |
| Power Consumption (Maximum) | ~ 250–300 W |
| Heat Dissipation (Static) | ~ 510 BTU/hr |
| Heat Dissipation (Typical) | ~ 580–650 BTU/hr |
| Heat Dissipation (Maximum) | ~ 1025 BTU/hr |
| Number of Fan Modules | 5 hot-swappable fans |
| Airflow Direction Options | Port-side intake or exhaust (depends on module choice) |
| Switching Capacity | 8 Tbps |
| Forwarding Rate | 1,200 Mpps |
| System Buffer | 32–42 MB |
| RTC | Supported |
| USB Deployment | Supported |
| Log Backup | Supported |
| Stacking | Not supported (reserved function) |
| Operating Conditions | Temp: 0–40 °C; Humidity: 5–95% (non-condensing); Altitude ≤ 5000 m |
| condition | new |
|---|
