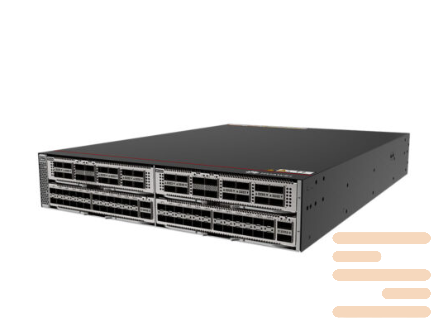

Switch Huawei CloudEngine CE8865-4C
SKU
CE8865-4C
EAN:
21436
Condition:
new
Stock:
available on order
Lead time:
25-35 days
Huawei CloudEngine CE8865-4C 4 service card slots (supporting 100GE / 400GE line cards), plus slots for main control, fan, and power modules
Category: Huawei Switch
Switches Huawei CloudEngine 8800 series provide 32 ports 100Ge, 64 ports 40Ge or 128 ports 25/10GE In one body 2U, provide excellent bandwidth and low delay. Used as core level switches or aggregation in data centers and high -performance campus networks.
Switches CloudEngine series 8800 (CE8800) Supports interaction with switches CE5800/CE6800/CE7800/12800, which enables implementation of an elastic virtualized network that is easy to manage and meets the requirements of broadband, server data processing, and multimedia applications.
Specifications of the switch Huawei CE8865-4C:
| Specification | Detail |
|---|---|
| Product Name / Model | Huawei CloudEngine CE8865-4C |
| Type | Modular Data Center Switch |
| Switching Capacity | 25.6 Tbps |
| Forwarding Performance | 8,000 Mpps |
| Slots | 4 service card slots (supporting 100GE / 400GE line cards), plus slots for main control, fan, and power modules |
| Supported Line Cards | • 32 × 100GE QSFP28 • 8 × 400GE QSFP-DD • Hybrid options (depending on configuration) |
| CPU | Multi-core processor, 2.0 GHz |
| Memory | DRAM: 16 GB |
| Storage | Flash: 64 MB × 2; SSD: 240 GB |
| Buffer | 64 MB |
| Dimensions (H × W × D) | 175 mm × 442 mm × 600 mm |
| Weight | Chassis only: ~27 kg Fully configured: ~43 kg |
| Power Supply | Pluggable AC / High-voltage DC modules, 1200 W each, 2+2 redundancy |
| Input Voltage | AC: 100 V – 240 V (50/60 Hz); HVDC: 190 V – 290 V |
| Power Consumption | Typical: ~1,200–1,300 W (depending on card type) Maximum: ~1,600 W |
| Airflow / Cooling | Front-to-back or back-to-front airflow (depending on module selection); redundant fan trays; hot-swappable |
| Operating Temperature | 0 °C to +40 °C (0–1800 m altitude) |
| Storage Temperature | –40 °C to +70 °C |
| Humidity | 5% – 95% (non-condensing) |
| Altitude | Up to 5,000 m (temperature derating applies above 1,800 m) |
| Noise Level | < 70 dB(A) at 27 °C |
| Reliability | Power: 2+2 redundancy Fans: N+1 redundancy Hot-swappable design for all key components |
| condition | new |
|---|
