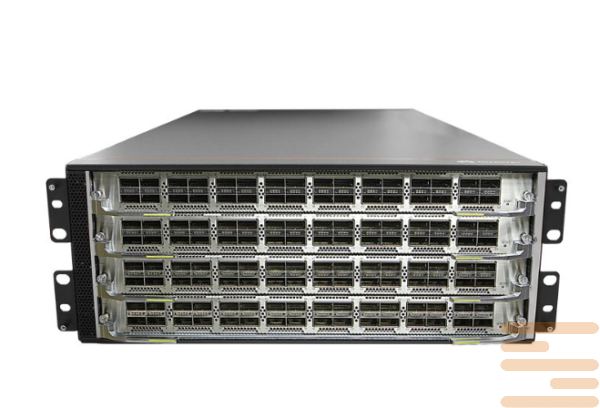

Switch Huawei CloudEngine CE9855-32DQ
Huawei CloudEngine CE9855-32DQ 32 × 400GE QSFP-DD (each port can be split into 4 × 100GE or 8 × 50GE depending on module)
Switches CloudEngine series 9800 Huawei is high -yielding, high -quality, reliable and stable ethernet -aggregate 100G. They are used for networks of data centers with 100Ge high density ports and low delay.
Switches compatible with a number of other line models CloudEngine (CE 16800, 12800, 8800, 6800 and 5800). The hardware devices of the series CloudEngine 9800 Can be used to construct an elastic, virtualized, high quality structure that will strictly meet the stringent requirements of cloud computing and data processing centers.
Switches work on the base of a hardware structure that provides high density ports 100 GE/40 GE To maintain diverse functions of the Data Center and can function as a core switches or aggregation in the data centers of data processing centers.
Specifications of the switch Huawei CloudEngine CE9855-32DQ:
| Specification | Detail |
|---|---|
| Product Name / Model | Huawei CloudEngine CE9855-32DQ |
| Type | Fixed Data Center Switch |
| Switching Capacity | 25.6 Tbps |
| Forwarding Performance | 8,000 Mpps |
| Ports | 32 × 400GE QSFP-DD (each port can be split into 4 × 100GE or 8 × 50GE depending on module) |
| CPU | 16-core, 2.0 GHz |
| Memory | DRAM: 16 GB |
| Storage | NOR Flash: 64 MB × 2; SSD Flash: 240 GB |
| Buffer | 64 MB |
| Dimensions (H × W × D) | 43.6 mm × 442 mm × 600 mm |
| Weight | ~16.9 kg (with power modules and fan trays) |
| Power Supply | Pluggable AC / High-voltage DC modules, 1200 W each, 1+1 redundancy |
| Input Voltage | AC: 100 V – 240 V (50/60 Hz); HVDC: 190 V – 290 V |
| Power Consumption | Typical: ~783 W; Maximum: ~1,163 W |
| Airflow / Cooling | Back-to-front or front-to-back airflow (depending on module type); fan trays are hot-swappable |
| Operating Temperature | 0 °C to +40 °C (0–1800 m altitude) |
| Storage Temperature | –40 °C to +70 °C |
| Humidity | 5% – 95% (non-condensing) |
| Altitude | Up to 5,000 m (temperature derating above 1,800 m) |
| Noise Level | < 70 dB(A) at 27 °C |
| Reliability | Power modules: 1+1 redundancy; Fan modules: N+1 redundancy; Hot-swappable components |
| condition | new |
|---|
