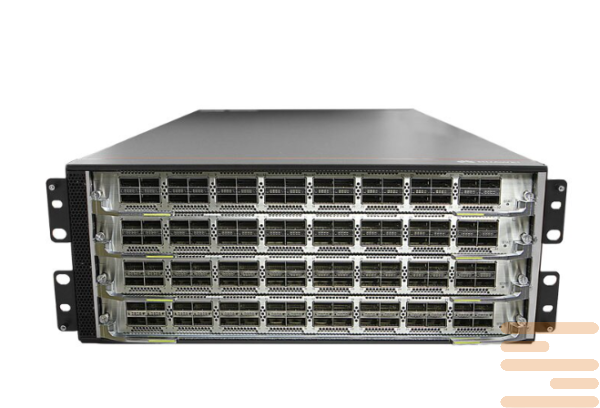

Switch Huawei CloudEngine CE9860-4C-EI-A
Huawei CloudEngine CE9860-4C-EI-A 4 subcard slots, supporting line cards such as 32 × 100GE QSFP28 or 8 × 400GE QSFP-DD
Switches CloudEngine series 9800 Huawei is high -yielding, high -quality, reliable and stable ethernet -aggregate 100G. They are used for networks of data centers with 100Ge high density ports and low delay.
Switches compatible with a number of other line models CloudEngine (CE 16800, 12800, 8800, 6800 and 5800). The hardware devices of the series CloudEngine 9800 Can be used to construct an elastic, virtualized, high quality structure that will strictly meet the stringent requirements of cloud computing and data processing centers.
Switches work on the base of a hardware structure that provides high density ports 100 GE/40 GE To maintain diverse functions of the Data Center and can function as a core switches or aggregation in the data centers of data processing centers.
Specifications of the switch Huawei CloudEngine CE9860-4C-EI-A:
| Specification | Detail |
|---|---|
| Product Name / Model | Huawei CloudEngine CE9860-4C-EI-A (Mainframe, 4 subcard slots) |
| Switching Capacity | 25.6 Tbps |
| Forwarding Performance | 8,000 Mpps (million packets per second) |
| Card Slots | 4 subcard slots, supporting line cards such as 32 × 100GE QSFP28 or 8 × 400GE QSFP-DD |
| CPU | 16-core, 2.0 GHz |
| Memory | DRAM: 16 GB |
| Storage | NOR Flash: 64 MB × 2; SSD Flash: 8 GB |
| Buffer | 65 MB |
| Dimensions (H × W × D) | 175 mm × 442 mm × 765 mm (excluding protrusions); maximum depth 817.5 mm |
| Weight | Empty chassis: ~26.9 kg; Full configuration: ~43.2 kg |
| Power Supply | Pluggable AC / High-voltage DC modules, 1200 W each, 2+2 redundancy |
| Input Voltage | AC: 100 V – 240 V (50/60 Hz); HVDC: 190 V – 290 V |
| Power Consumption | Typical: ~1,200–1,300 W (depending on cards); Maximum: ~1,627 W |
| Airflow / Cooling | Back-to-front airflow (port side intake); 5 fan slots with redundancy; hot-swappable fans and power modules |
| Operating Temperature | 0 °C to +40 °C (0–1800 m altitude) |
| Storage Temperature | –40 °C to +70 °C |
| Humidity | 5% – 95% (non-condensing) |
| Altitude | Up to 5,000 m (temperature derating above 1,800 m) |
| Noise Level | < 66 dB(A) at 27 °C (back-to-front airflow) |
| Reliability | Power modules: 2+2 redundancy; Fan modules: 4+1 redundancy; Hot-swappable design |
| condition | new |
|---|
