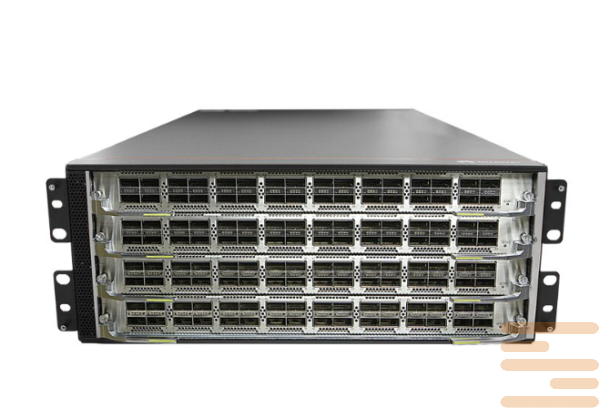

Switch Huawei CloudEngine CE9865-4C
Huawei CloudEngine CE9865-4C On 100GE cards: top-row ports can be split (groups of 4) into lower-rate ports (e.g. 4×10GE or 4×25GE), but involves restrictions (other ports in group may become unavailable)
Switches CloudEngine series 9800 Huawei is high -yielding, high -quality, reliable and stable ethernet -aggregate 100G. They are used for networks of data centers with 100Ge high density ports and low delay.
Switches compatible with a number of other line models CloudEngine (CE 16800, 12800, 8800, 6800 and 5800). The hardware devices of the series CloudEngine 9800 Can be used to construct an elastic, virtualized, high quality structure that will strictly meet the stringent requirements of cloud computing and data processing centers.
Switches work on the base of a hardware structure that provides high density ports 100 GE/40 GE To maintain diverse functions of the Data Center and can function as a core switches or aggregation in the data centers of data processing centers.
Specifications of the switch Huawei CloudEngine CE9865-4C:
| Parameter | Specification |
|---|---|
| Model | Huawei CloudEngine CE9865-4C |
| Part Number | 02356BCE |
| First Supported Version | V300R024C00 |
| Chassis / Slots | 4 subcard slots (line-card slots) |
| CPU | 16 cores, 2.0 GHz |
| Memory (DRAM) | 16 GB |
| Flash | 2 × 64 MB NOR Flash |
| SSD Storage | 8 GB SSD |
| Console Port | RJ-45 |
| USB Port | Supported (USB 2.0) |
| Weight Without Packaging (bare chassis) | ~28.7 kg (excluding fan modules, power modules, and line cards) |
| Weight Without Packaging (full configuration: with 4 PSUs + 4 fans) | ~34.4 kg |
| Weight Without Packaging (with 4 × 32-port 100GE cards) | ~45 kg |
| Weight Without Packaging (with 4 × 8-port 400GE cards) | ~44 kg |
| Weight With Packaging (excluding fans/PSUs/cards) | ~53.7 kg |
| Weight With Packaging (full configuration, 4 PSUs + 4 fans + 32-port 100GE cards) | ~70 kg |
| Weight With Packaging (full configuration, 4 PSUs + 4 fans + 8-port 400GE cards) | ~69 kg |
| Dimensions Without Packaging (H × W × D, basic) | 175 mm × 442 mm × 765 mm |
| Dimensions Without Packaging (maximum depth including rear protrusions) | 175 mm × 442 mm × 817.5 mm |
| Dimensions With Packaging | 485 mm × 670 mm × 1060 mm |
| Chassis Height | 4 U |
| Installation Type | Cabinet installation |
| Downlink / Line Cards Supported | • CE98-D32CQ-F: 32 × 100GE QSFP28 line cards • CE98-D8DQ-F: 8 × 400GE QSFP-DD line cards |
| Port Flexibility / Splitting | • On 100GE cards: top-row ports can be split (groups of 4) into lower-rate ports (e.g. 4×10GE or 4×25GE), but involves restrictions (other ports in group may become unavailable) • On 400GE cards: 400GE ports can be split into 4×100GE or 2×200GE; copper cable support limited, splitting only with optical modules |
| Power Supply Slots | 4 slots for pluggable power modules |
| Power Supply Redundancy | 2+2 backup mode |
| Power Supply Types | AC pluggable, DC pluggable, High-voltage DC (HVDC) pluggable |
| Rated Input Voltages | • AC & 240 V DC modules • –48 V to –60 V DC modules • 336 V DC (HVDC) modules |
| Input Voltage Ranges | • AC: ~90-290 V AC, 45-65 Hz • DC: ± ranges per module type as above |
| Number of Fans | 4 pluggable fan modules |
| Fan Redundancy | 3+1 hot standby (device can operate if one fan fails briefly) |
| Airflow / Cooling | Air cooling; back-to-front airflow (intake from port side, exhaust out power supply side) |
| Typical Power Consumption | • With 4 × CE98-D32CQ cards (100% traffic, 64-port 100G-SR4 optical modules, normal temperature): ~1465 W • With 4 × CE98-D8DQ cards (100% traffic, 16-port 400G-SR8 optical modules, normal temperature): ~1140 W |
| Static Power Consumption | • With 4 × CE98-D32CQ cards: ~1083 W • With 4 × CE98-D8DQ cards: ~847 W |
| Maximum Power Consumption | • With 4 × CE98-D32CQ cards (100% traffic, all 128 ports active, normal temp): ~1854 W • With 4 × CE98-D8DQ cards: ~1457 W |
| Typical Heat Dissipation | • With 4 × CE98-D32CQ: ~4999 BTU/h • With 4 × CE98-D8DQ: ~3890 BTU/h |
| Static Heat Dissipation | • With 4 × CE98-D32CQ: ~3695 BTU/h • With 4 × CE98-D8DQ: ~2890 BTU/h |
| Maximum Heat Dissipation | • With 4 × CE98-D32CQ: ~6326 BTU/h • With 4 × CE98-D8DQ: ~4971 BTU/h |
| Surge Protection (Power Supply) | • AC: 6 kV common mode / 6 kV differential mode • DC: 4 kV common mode / 2 kV differential mode • HVDC: 4 kV common mode / 2 kV differential mode |
| Availability (Reliability) | ≈ 0.9999932861 |
| condition | new |
|---|
