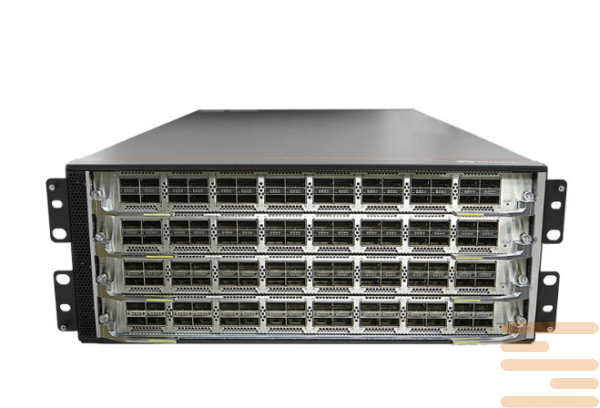

Switch Huawei CloudEngine CE9866-128DQ
Huawei CloudEngine CE9866-128DQ 128 × 400GE QSFP112 (downlink) + 2 × 10GE SFP+ (management / O&M)
Switches CloudEngine series 9800 Huawei is high -yielding, high -quality, reliable and stable ethernet -aggregate 100G. They are used for networks of data centers with 100Ge high density ports and low delay.
Switches compatible with a number of other line models CloudEngine (CE 16800, 12800, 8800, 6800 and 5800). The hardware devices of the series CloudEngine 9800 Can be used to construct an elastic, virtualized, high quality structure that will strictly meet the stringent requirements of cloud computing and data processing centers.
Switches work on the base of a hardware structure that provides high density ports 100 GE/40 GE To maintain diverse functions of the Data Center and can function as a core switches or aggregation in the data centers of data processing centers.
Technical Characteristics switch Huawei CloudEngine CE9866-128DQ:
| Parameter | Specification |
|---|---|
| Model | Huawei CloudEngine CE9866-128DQ |
| Ports | 128 × 400GE QSFP112 (downlink) + 2 × 10GE SFP+ (management / O&M) |
| CPU | 32 cores, 2.2 GHz |
| Memory (DRAM) | 16 GB |
| Flash Storage | 8 GB SSD + 2 × 64 MB NOR Flash |
| Chassis Height | 4 U |
| Installation Type | Cabinet installation |
| Dimensions Without Packaging (excluding protrusions) (H × W × D) | 175 mm × 442 mm × 765 mm |
| Dimensions Without Packaging (maximum depth including protrusions) | 175 mm × 442 mm × 800 mm |
| Dimensions With Packaging (including pallet) | 495 mm × 670 mm × 1060 mm |
| Weight Without Packaging (base, excluding fans / PSUs / optical modules) | ~37.22 kg |
| Weight Without Packaging (full configuration, excluding optical modules) | ~44.02 kg |
| Weight With Packaging (base) | ~61.72 kg |
| Weight With Packaging (full configuration) | ~68.44 kg |
| Power Supply Modules | AC pluggable, HVDC pluggable |
| Redundant Power Supply | 2+2 backup |
| Rated Input Voltages | • AC & 240 V DC module: 100-240 V AC, 50/60 Hz; • DC module: –48 V to –60 V and +48 V DC; • High-voltage DC module: 336 V DC |
| Input Voltage Ranges | Corresponding ranges for each power module type, allowing around ± tolerances around the rated values |
| Number of Power Modules | 4 |
| Maximum Input Current | Varies by power module type |
| Power Consumption (Static) | ~972 W |
| Power Consumption (Typical) | ~1699 W (100% traffic, 64 short-distance optical ports, 4 AC power modules, normal temp) |
| Power Consumption (Maximum) | • ~2425 W (short-distance, all 128 ports, normal temp)• ~3197 W (long-distance optical modules, 128 ports, at 40 °C) |
| Heat Dissipation (Static) | ~3317 BTU/hour |
| Heat Dissipation (Typical) | ~5798 BTU/hour (with 64 short-distance optical ports) |
| Heat Dissipation (Maximum) | • ~8275 BTU/hour (short-distance, 128 ports)• ~10909 BTU/hour (long-distance, 128 ports at 40 °C) |
| Fans | 6 pluggable fan modules, supports 5+1 redundancy (hot standby) |
| Airflow / Cooling | Air-cooling; port-side air intake |
| MTBF / Availability | MTBF ≈ 16.35 years; Availability ≈ 0.9999916201 |
| Noise (Normal Temperature ~27°C) | Average: ~65.1 dB(A); Maximum: ~72.65 dB(A) |
| Noise (High Temperature ~40°C) | Average: ~83.7 dB(A); Maximum: ~90.8 dB(A) |
| Operating Temperature | 0 °C to 40 °C at 0–1800 m altitude; above that, maximum temperature reduces with altitude increase |
| Storage Temperature | –40 °C to +70 °C |
| Operating Altitude | Up to 5000 m |
| Relative Humidity (Operating / Storage) | 5% to 95% non-condensing |
| condition | new |
|---|
