Huawei CloudEngine S3700 - This is a series of next-generation switches designed to provide high performance and reliability in enterprise networks. These switches feature advanced technologies that provide scalability, flexibility, and security for network operations.
Series CloudEngine S3700 Offers a wide range of models with different port configurations, including koMbtined Ethernet ports and SFP, as well as 10GbE ports to meet the diverse needs of the network infrastructure. With support advanced protocols and technologies, such as TRILL (Transparent Interconnection of Lots of Links), M-LAG (Multi-Chassis Link Aggregation Group), and Virtual System (VS), CloudEngine S3700 provides high throughput, fault tolerance and flexibility in network management.
In addition, the switches of the series CloudEngine S3700 Offer a wide range of management and monitoring features, including mechanisms to protect against DDoS-attacks, quality of service management (QoS), network virtualization and transparent traffic management. These features enable organizations to efficiently manage and secure their enterprise networks, and optimize the performance of applications and services.
In general, Huawei CloudEngine S3700 is a reliable and powerful solution for modern enterprise networks, capable of delivering high performance, flexibility and security, meeting the requirements of the most demanding network environments.

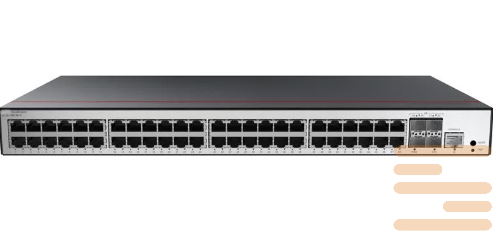

Technical specifications of the switch Huawei CloudEngine S3710-H48LP4S-A:
|
Model
|
CloudEngine S3710-H48LP4S-A
|
|
Fixed port
|
48 x 10/100/1000BASE-T ports(PoE+), 4 x GE SFP ports
|
|
MAC address table
|
• MAC address learning and aging
• 10K MAC entries (MAX)
• Static, dynamic, and blackhole MAC address entries
• Packet filtering based on source MAC addresses
• Interface-based MAC learning limiting
|
|
VLAN features
|
• 4094 VLANs
• Voice VLAN
• MUX VLAN
• VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and interfaces
• VLAN Stacking
|
|
Dimensions (H x W x D)
|
43.6 mm x 442 mm x 220 mm
|
|
Chassis height
|
1 U
|
|
Chassis weight (including packaging)
|
7.57 kg
|
|
Power supply type
|
Built-in AC power
|
|
Rated input voltage
|
100 V AC to 240 V AC, 50/60 Hz
|
|
Input voltage range
|
• AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
|
|
Maximum power consumption
|
• 52.48 W (without PD)
• 474.7 W (with PD, PD power consumption of 380 W)
|
|
Noise
|
• Under normal temperature (sound power): 49.3dB (A)
• Under high temperature (sound power): 63dB (A)
• Under normal temperature (sound pressure): 37.3dB (A)
|
|
Long-term operating temperature
|
• 0-1800 m altitude: -5°C to +45°C
• 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m.
|
|
Storage temperature
|
-40°C to +70°C
|
|
Relative humidity
|
5% to 95% (noncondensing)
|
|
Surge protection Specification (service port)
|
±6 kV in common mode
|
|
Surge protection specification (power port)
|
• Differential mode: ± 6 kV
• Common mode: ± 6 kV
|
|
Heat dissipation
|
Air-cooled heat dissipation and intelligent speed adjustment
|
|
Physical security
|
One Kensington lock slot, can be used to lock the device to mounting bracket
|
