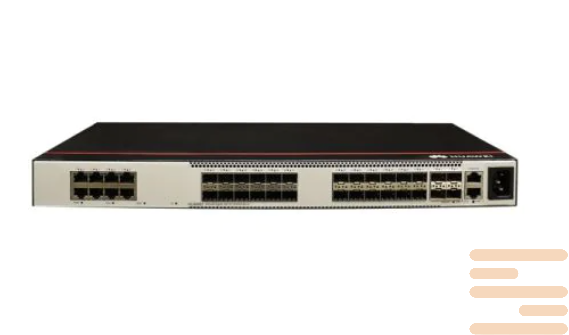

Switch Huawei CloudEngine S5731-S32ST4X-D
6986 $
S5731-S32ST4X-D (8 10/100 / 1000Base-T Ethernet port, 24 Gigabit SFP, 4 10G SFP +, DC power supply, front maintenance).
Huawei S5700 – A series of highly effective, innovative switches consisting of a large number of devices and with different numbers 1G ports. Switches are equipped with interfaces uplink 10G and the enormous functionality of the software (Software).
Switches Huawei S5700 intended for use in places where excellent, high throughput, minimal latency, and fault tolerance are required.
Depending on the functionality of the software switches series Huawei S5700 separated into several series.
The switches are based Huawei — Versatile Routing Platform (VRP).
The peculiarity of this series of switches is: improved functionality 3-The level, Simplified operation and maintenance and flexible ways to organize the Internet.
Specifications of the switch Huawei CloudEngine S5731-S32ST4X-D:
| Feature | Specification |
|---|---|
| Model | CloudEngine S5731-S32ST4X-D |
| Downlink Ports | 8 × 10/100/1000BASE-T Ethernet ports |
| Uplink Ports | 24 × GE SFP ports, 4 × 10GE SFP+ ports |
| Switching Capacity | 144 Gbps (local) / 672 Gbps (system) |
| Forwarding Performance | 108 million packets per second (Mpps) |
| Memory | 2 GB RAM / 1 GB Flash |
| Power Supply | Built-in DC power supply (–48 V DC to –60 V DC) |
| Cooling | 2 built-in fans, airflow left-to-right |
| Dimensions (H × W × D) | 43.6 mm × 442 mm × 220 mm |
| Weight | 2.98 kg (without packaging) |
| Operating Temperature | −5 °C to +45 °C (0–1800 m altitude) |
| Storage Temperature | −40 °C to +70 °C |
| Ingress Protection | IP20 |
| condition | new |
|---|
