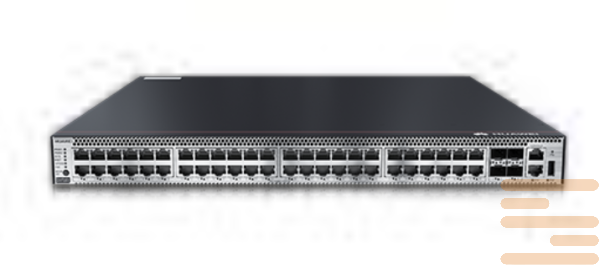

Switch Huawei CloudEngine S5731-S48S4X-A
10743 $
S5731-S48S4X-A (48 Gigabit SFP, 4 10G SFP +, AC power supply, front maintenance).
Huawei S5700 – A series of highly effective, innovative switches consisting of a large number of devices and with different numbers 1G ports. Switches are equipped with interfaces uplink 10G and the enormous functionality of the software (Software).
Switches Huawei S5700 intended for use in places where excellent, high throughput, minimal latency, and fault tolerance are required.
Depending on the functionality of the software switches series Huawei S5700 separated into several series.
The switches are based Huawei — Versatile Routing Platform (VRP).
The peculiarity of this series of switches is: improved functionality 3-The level, Simplified operation and maintenance and flexible ways to organize the Internet.
Specifications of the switch Huawei CloudEngine S5731-S48S4X-A:
| Feature | Specification |
|---|---|
| Model | CloudEngine S5731-S48S4X-A |
| Form Factor | 1U Rack-mounted |
| Dimensions (W × D × H) | 442 mm × 220 mm × 43.6 mm |
| Weight | 7.65 kg |
| Ports | 44 × 1/2.5GE SFP ports, 4 × GE SFP ports, 4 × 10GE SFP+ ports |
| Forwarding Performance | 125 million packets per second (Mpps) |
| Switching Capacity | 308 Gbps (non-stacked), 672 Gbps (stacked) |
| Memory | 2 GB DRAM, 1 GB Flash |
| Power Supply Slots | 2 hot-swappable slots (supports 1+1 redundancy) |
| Power Supply Options | PAC150S12-R (150 W AC), PDC180S12-CR (180 W DC), PAC600S12-CB/DB/EB (600 W AC/DC) |
| Operating Temperature | -5°C to 45°C |
| Cooling | 2 built-in fans (left-to-right airflow) |
| Management Ports | 1 × RJ45 console port, 1 × RJ45 Ethernet management port |
| Stacking | Supports Intelligent Stack (iStack) |
| Redundancy Protocols | STP, RSTP, MSTP, Smart Link, ERPS, Ethernet OAM |
| IPv6 Support | Full IPv6 support |
| PoE Support | Not supported |
| Mounting | 19-inch rack mountable |
| Warranty | 5-year warranty (subject to terms and conditions) |
| condition | new |
|---|
